Feature

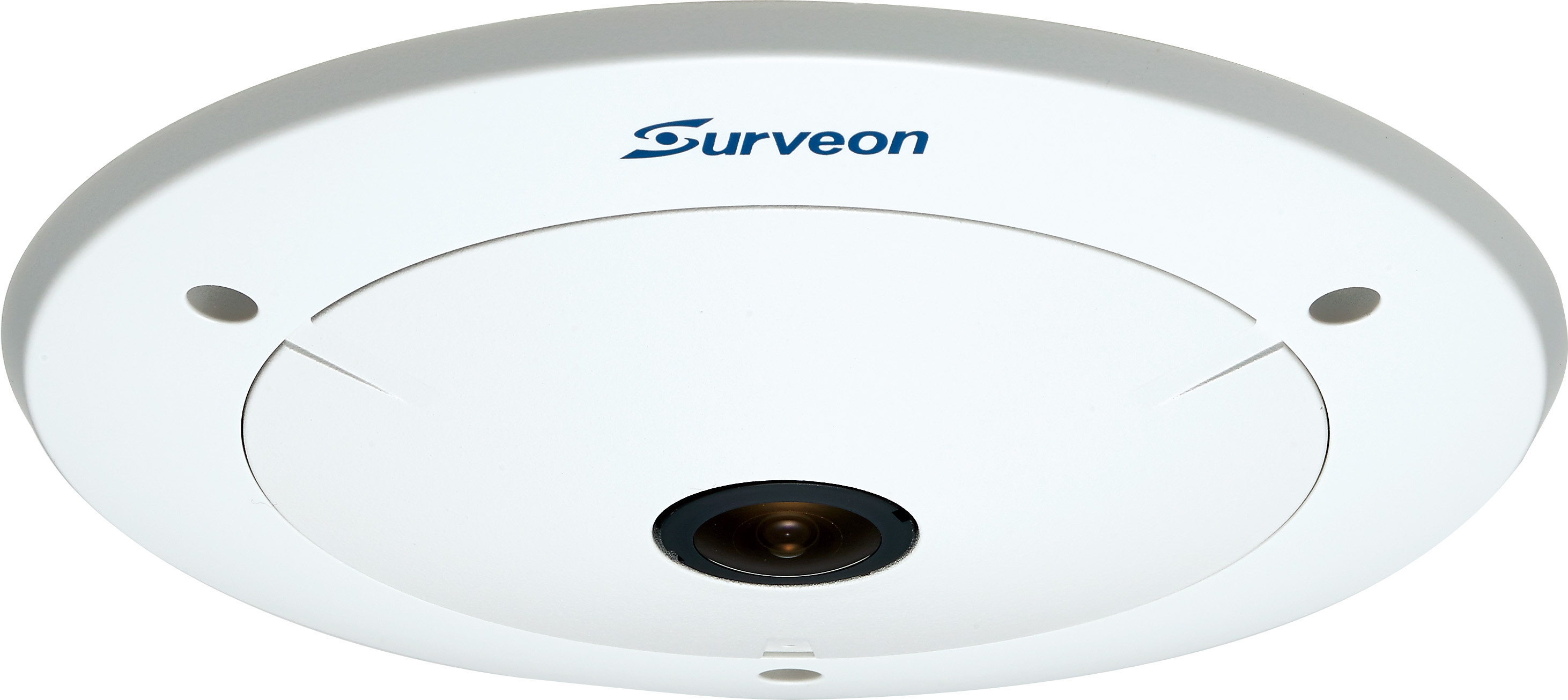

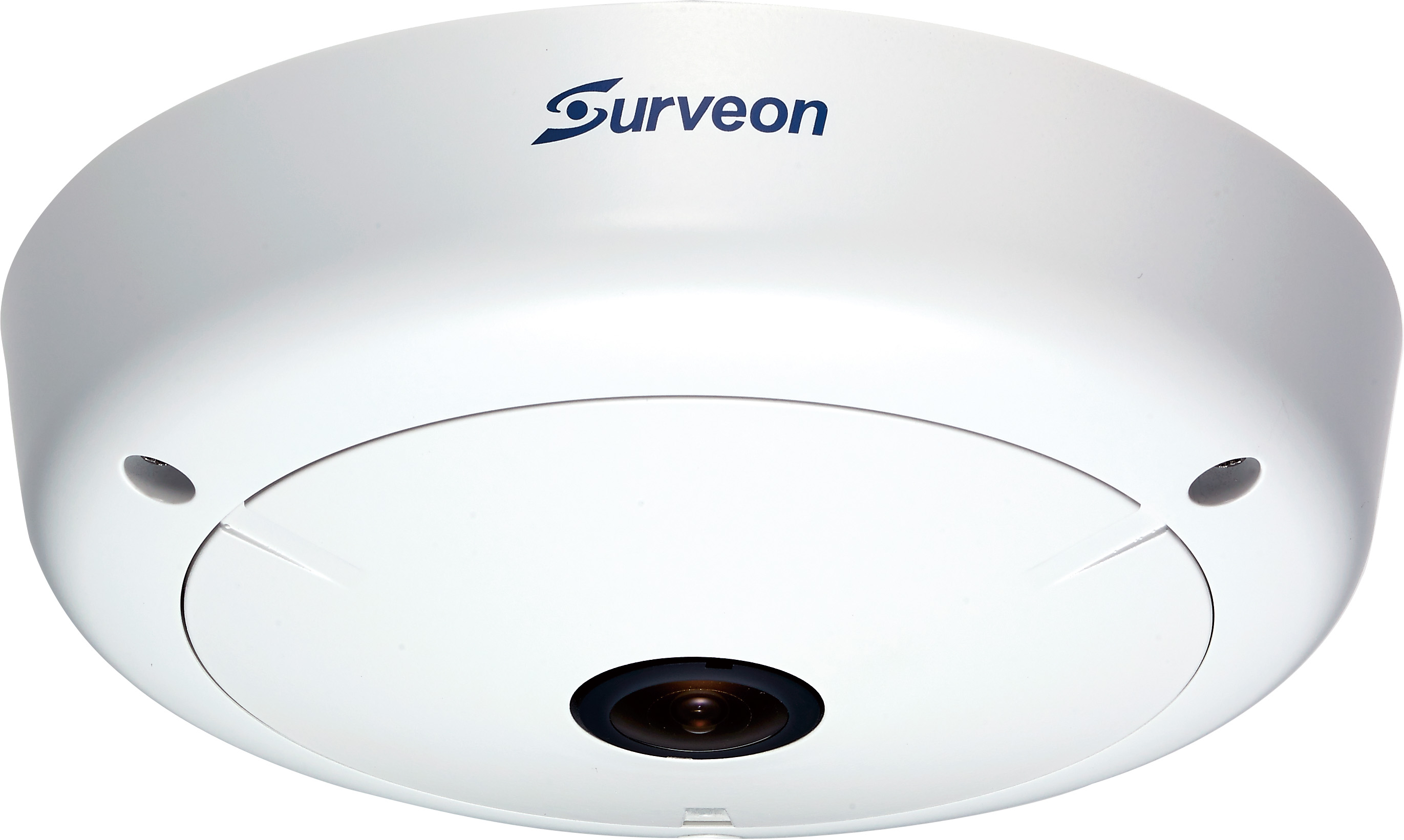

The CAM7511 indoor fisheye camera is part of Surveon Premium Network Camera Series. The CAM7511 provides 2560 x 1920 resolution at 14fps and a fisheye lens for 360° surround view (or 180° panoramic view). The advanced functions include WDR, ROI video cropping, 2D/3D noise reduction, and edge enhancement. The removable IR-cut filter allows 24/7 operations even in the low lux condition. The CAM7511 also comes with the Power over Ethernet and is designed to be mounted on the ceiling (hard ceiling mount or in-ceiling mount), wall or ground. It is the ideal choice for high quality surveillance in the dynamic indoor applications.
- Megapixel Progressive Scan Sensor
- Up to 2560 x 1920 Video Resolution
- H.264/MPEG4/MJPEG 2 Simultaneous Video Streams
- Support Surveon Video Intelligence
- MicroSD/SDHC Local Storage for Alarm Capture
- Day/Night Function with IR-Cut Filter
- Power over Ethernet (IEEE 802.3af )
- Advanced ISP Function (HDR, ROI, Luminance Control, 2D/3D De-noise, Edge Enhancement, Lens Correction)
- 360° Surround View
Technical Specification
| Camera | Image Sensor | 1/2.5" megapixel progressive scan CMOS |
|---|---|---|
| Lens | f=1.05mm, F2.8 | |
| SNR | 48dB | |
| WDR | Yes | |
| Day/Night ICR | Yes | |
| IR LED | N/A | |
| Min. Illumination | 0.05 Lux @ F2.8 (B/W) 0.5 Lux @ F2.8 (Color) |
|
| Iris Control | Fixed | |
| Shutter Time | 1/1 ~ 1/1,000,000 s | |
| Viewing Angle | Vertical: 180° | |
| Camera Angle Adjustment |
N/A | |
| Pan/Tilt/Zoom Functionalities |
N/A | |
| Video | Video Compression | H.264/MPEG-4/MJPEG |
| Resolution | Up to 2560 x 1920 | |
| Frame Rate | 14 fps at QSXGA (2560 x 1920) 21 fps at QXGA (2048 x 1536) 30 fps at 1080P (1920 x 1080) 30 fps at SXGA (1280 x 1024) 30 fps at 720P (1280 x 720) 30 fps at D1 (720 x 480) 30 fps at VGA (640 x 480) 30 fps at QVGA (320 x 240) |
|
| Video Stream | Dual stream at H.264, MPEG-4, and MJPEG simulataneously | |
| Bit Rate | 32K ~ 20Mbps, VBR, CBR, controller frame rate and quality | |
| Video Control | AGC (Auto Gain Control), AWB (Auto White Balance), AES (Auto Electronic Shutter), Luminance Control, WDR, 2D/3D De-noise, ROI, Edge Enhancement, Lens Correction, image adjustment | |
| Intelligent Video | Motion detection, tampering detection (blocked, redirected, defocused, or spray-painted) | |
| Video Jack | N/A | |
| Audio | Built-in MIC | Yes |
| Audio Compression | 16KHz, ADPCM/G.711 | |
| Audio Input/Output | 3.5mm phone jack (optional) | |
| I/O and Event Management |
Alarm In | 1, terminal block (optional) |
| Alarm Out | 1, terminal block (optional) | |
| Video Buffer | 5 second pre-alarm, 30 second post-alarm | |
| Event Action | Send snapshot or video clip by FTP or email, record to NAS, record to local storage, trigger DO | |
| Network | Supported Protocols | IPv4, IPv6, ARP, TCP, UDP, ICMP, IGMP, DHCP, NTP, DDNS, SMTP, SNMP, FTP, HTTP, HTTPS, CIFS, PPPoE, UPnP, RTP, RTSP, RTCP, 3GPP |
| Ethernet | 10/100 Base-T / RJ45 | |
| System | Local Storage | microSD/SDHC x 1 (Class 4/Class 6 only) |
| RS-485 | N/A | |
| USB | N/A | |
| SDK | Surveon SDK 2.0 | |
| Viewing System | OS | Microsoft Windows XP/Vista/7 |
| Browser | Microsoft IE 6.0 or above | |
| Software | Surveon VMS 2.5 | |
| General | Temperature | Operation: -10°C~ 50°C (14°F~122°F) Storage: -30°C ~ 60°C (-22°F~140°F) |
| Humidity | 5 to 90% | |
| Power | 12VDC 1.5A ; PoE (IEEE 802.3af ) with Class 3 | |
| Power Consumption | Max. 5W | |
| Dimension (WxHxD) | Dim: Φ145mm x 47mm (H) | |
| Weight | Net: 490g | |
| Certification | Safety: LVD EMC: FCC, CE, GOST |
|
| Warranty | 3 years |
