Feature

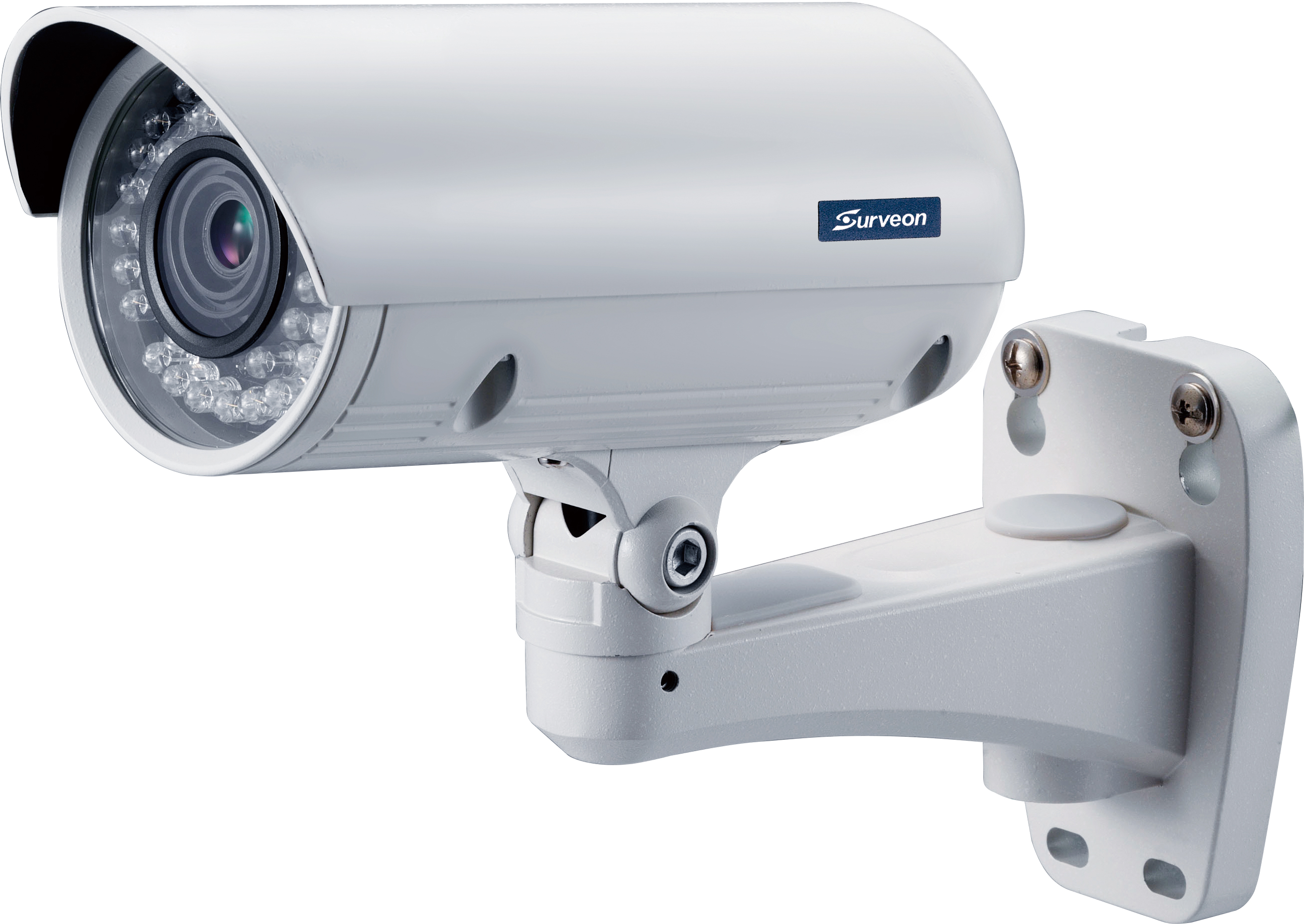

The CAM3351R4 WDR outdoor camera is part of Surveon Professional Network Camera Series. Equipped with the SONY Exmor sensor, the CAM3351R4 provides 1920 x 1080 (1080P) resolution at 30fps and IP66-rated weatherproof housing for withstanding rain and dust. The advanced functions include WDR, ROI video cropping, 2D/3D noise reduction, and edge enhancement. Its built-in infrared LEDs and removable IR-cut filter allow 24/7 operations even in the low lux condition. The compact size makes it the ideal choice for megapixel surveillance in the outdoor applications.
- Megapixel SONY Exmor Sensor
- Up to 1920 x 1080 Video Resolution
- H.264/MPEG4/MJPEG 2 imultaneous Video Streams
- Surveon Video Intelligent Ready
- MicroSD/SDHC Local Storage for Alarm Capture
- Advanced ISP Function (WDR, ROI, Luminance Control, 2D/3D De-noise, Edge Enhancement, Lens Correction)
- PoE (IEEE 802.3af) and Day/Night IR-Cut Filter
- Built-in IR Illuminators, Effective Up to 20 Meters
- IP66 for Outdoor Application
Technical Specification
| Camera | Image Sensor | 1/2.9” megapixel SONY Exmor CMOS |
|---|---|---|
| Lens | 3351R4: f4.2 mm, F1.8 3351R6: f6.0 mm, F2.0 |
|
| SNR | 48dB | |
| WDR | Yes | |
| Day/Night ICR | Yes | |
| IR LED | Yes(20m) | |
| Min illumination | 0.01 Lux @ F1.4 (B/W), 0.1 Lux @ F1.4 (Color) | |
| Iris Control | Fixed | |
| Shutter Time | 1/1 ~ 1/1,000,000 s | |
| Viewing Angle | 3351R4: Diagonal: 89°, Horizontal: 71°, Vertical: 49.5° 3351R6: Diagonal: 60.5°, Horizontal: 52.4°, Vertical: 29° |
|
| Camera Angle Adjustment |
N/A | |
| Pan/Tilt/Zoom Functionalities |
N/A | |
| Video | Video compression | H.264/MPEG-4/MJPEG |
| Resolution | Up to 1920 x 1080 | |
| Frame Rate | 30 fps at 1080P (1920 x 1080) 30 fps at SXGA (1280 x 1024) 30 fps at HD720 (1280 x 720) 30 fps at D1 (720 x 480) 30 fps at VGA (640 x 480) 30 fps at QVGA (320 x 240) |
|
| Video Stream | Dual stream at H.264, MPEG-4, and MJPEG simultaneously | |
| Bit Rate | 32K ~ 10Mbps, VBR, CBR, controller frame rate and quality | |
| Video Control | AGC (Auto Gain Control), AWB (Auto White Balance), AES (Auto Electronic Shutter), Luminance Control, WDR, 2D/3D De-noise, ROI, Edge Enhancement, Lens Correction, image adjustment | |
| Intelligent video | Motion detection, tampering detection (blocked, redirected, defocused, or spray-painted) |
|
| Video Jack | N/A | |
| Audio | Built-in MIC | N/A |
| Audio compression | N/A | |
| Audio Input | N/A | |
| Audio Output | N/A | |
| I/O and Event Management | Alarm In | N/A |
| Alarm Out | N/A | |
| Video Buffer | 5 second pre-alarm, 30 second post-alarm | |
| Event Action | Send snapshot or video clip by FTP or email, record to NAS, record to local storage, trigger DO | |
| Network | Supported Protocols | IPv4, IPv6, ARP, TCP, UDP, ICMP, IGMP, DHCP, NTP, DDNS, SMTP, SNMP, FTP, HTTP, HTTPS, CIFS, PPPoE, UPnP, RTP, RTSP, RTCP, 3GPP |
| Ethernet | 10/100 Base-T / RJ45 | |
| System | Local Storage | microSD/SDHC x 1 |
| RS-485 | N/A | |
| USB | N/A | |
| SDK | Surveon SDK 2.0 | |
| Viewing System | OS | Microsoft Windows XP/Vista/7 |
| Browser | Microsoft IE 6.0 or above | |
| Software | Surveon VMS 2.5 | |
| General | Temperature | Operation: -10°C ~ 50°C (14°F~122°F) |
| Humidity | 5 to 90% | |
| Power | PoE (IEEE 802.3af ) with Class 3 | |
| Power Consumption | Max. 7.5W (w/o Heater) | |
| Dimension (WxHxD) | Length: 165mm, Diameter: 75mm | |
| Weight | NET: 600g With bracket: 800g |
|
| Certification | Safety: LVD EMC: FCC, CE, IP66 |
|
| Warranty | 3 years |
