Feature

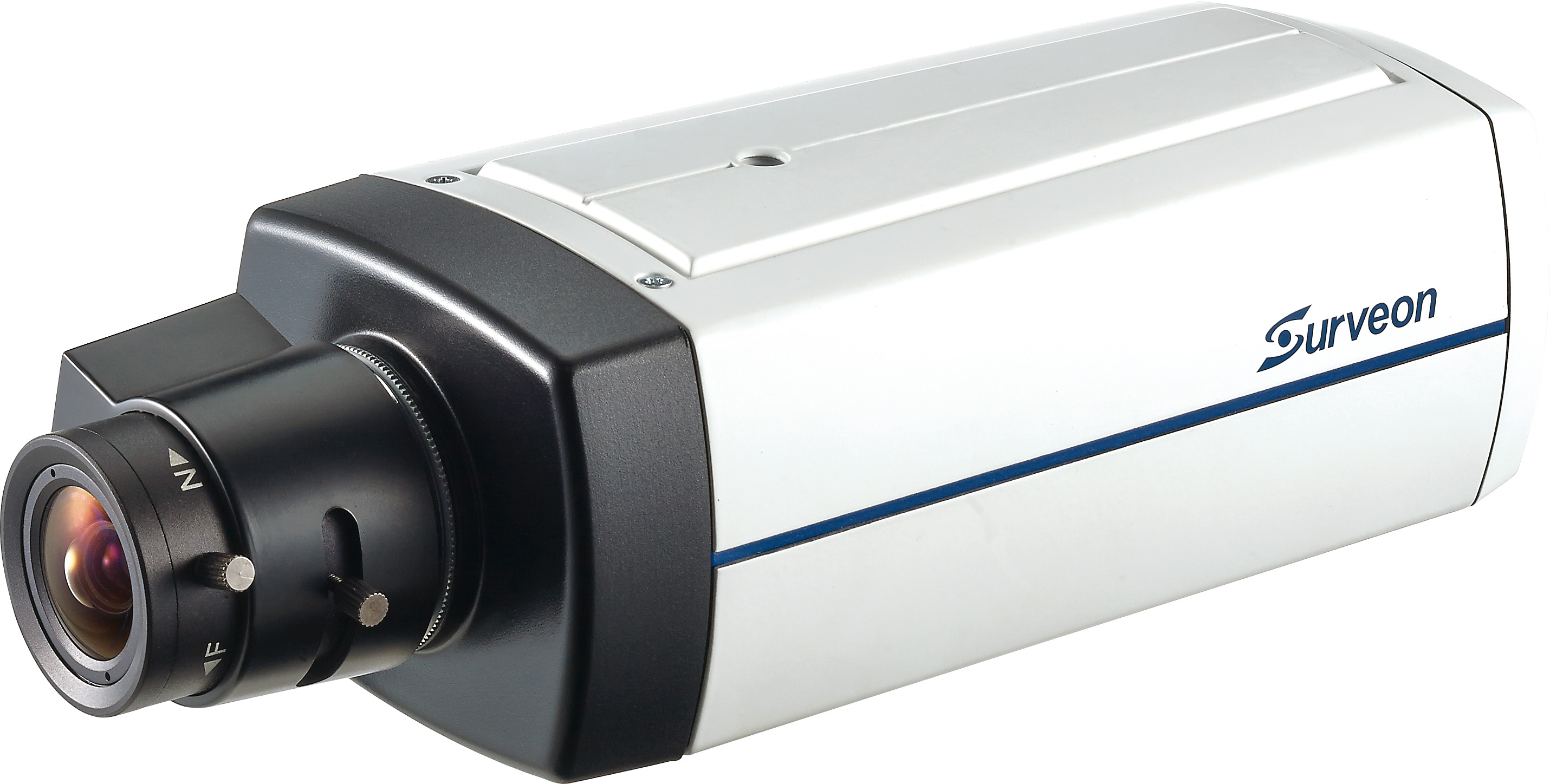

The CAM2331SP low light fixed camera is part of Surveon Premium Network Camera Series. Equipped with the SONY Exmor sensor, the CAM2331SP provides 1920 x 1080 (1080P) resolution at 30fps, P-iris, and dual streams at H.264 high profile, MPEG-4 and MJPEG simultaneously. The advanced functions include WDR, ROI video cropping, 2D/3D noise reduction, and edge enhancement. The built-in SONY Exmor sensor and removable IR-cut filter allow 24/7 operations even in the low lux condition. The CAM2331SP also comes with the CS mount changeable lens and Power over Ethernet. It is the ideal choice for high quality surveillance in the dynamic applications.
- Megapixel SONY Exmor Sensor
- Full HD & Real Time Network Camera
- Up to 1920 x 1080 Video Resolution
- H.264/MPEG4/MJPEG 2 Simultaneous Video Streams
- Support Surveon Video Intelligence
- MicroSD/SDHC Local Storage for Alarm Capture
- Power over Ethernet (IEEE 802.3af )
- Day/Night Function with IR-Cut Filter
- Advanced ISP Function (WDR, ROI, Luminance Control, 2D/3D De-noise, Edge Enhancement, Lens Correction)
Technical Specification
Camera | Image Sensor | 1/2.8” megapixel SONY Exmor CMOS |
---|---|---|
Lens | 2331SC: Changeable (CS/C mount) 2331SP: 3-10.5mm P-Iris Lens, F1.4 (CS mount) |
|
SNR | 50dB | |
WDR | Yes | |
Day/Night ICR | Yes | |
IR LED | N/A | |
Min. Illumination | 0.005 Lux @ F1.2 (B/W) 0.05 Lux @ F1.2 (Color) |
|
Iris Control | 2331SC: DC drive 2331SP: P-Iris |
|
Shutter Time | 1/1 ~ 1/1,000,000 s | |
Viewing Angle | Horizontal: 100°‐ 30° | |
Camera Angle Adjustment |
N/A | |
Pan/Tilt/Zoom Functionalities |
N/A | |
Video | Video Compression | H.264/MPEG-4/MJPEG |
Resolution | Up to 1920 x 1080 | |
Frame Rate | 30 fps at 1080P (1920 x 1080) 30 fps at SXGA (1280 x 1024) 30 fps at HD720 (1280 x 720) 30 fps at D1 (720 x 480) 30 fps at VGA (640 x 480) 30 fps at QVGA (320 x 240) |
|
Video Stream | Dual stream at H.264, MPEG-4, and MJPEG simultaneously | |
Bit Rate | 32K ~ 10Mbps, VBR, CBR, controller frame rate and quality | |
Video Control | AGC (Auto Gain Control), AWB (Auto White Balance), AES (Auto Electronic Shutter), Luminance Control, WDR, 2D/3D De-noise, ROI, Edge Enhancement, Lens Correction, image adjustment | |
Intelligent video | Motion detection, tampering detection (blocked, redirected, defocused, or spray-painted) | |
Video Jack | Yes (BNC) | |
Audio | Built-in MIC | N/A |
Audio Compression | 16KHz, ADPCM/G.711 | |
Audio Input | 3.5mm phone jack | |
Audio Output | 3.5mm phone jack | |
I/O and Event Management | Alarm In | 1, terminal block |
Alarm Out | 1, terminal block | |
Video Buffer | 5 second pre-alarm, 30 second post-alarm | |
Event Action | Send snapshot or video clip by FTP or email, record to NAS, record to local storage, trigger DO | |
Network | Supported Protocols | IPv4, IPv6, ARP, TCP, UDP, ICMP, IGMP, DHCP, NTP, DDNS, SMTP, SNMP, FTP, HTTP, HTTPS, CIFS, PPPoE, UPnP, RTP, RTSP, RTCP, 3GPP |
Ethernet | 10/100 Base-T / RJ45 | |
System | Local Storage | microSD/SDHC x 1 |
RS-485 | 1 (2 pin on terminal block) | |
USB | N/A | |
SDK | Surveon SDK 2.0 | |
Viewing System | OS | Microsoft Windows XP/Vista/7 |
Browser | Microsoft IE 6.0 or above | |
Software | Surveon VMS 2.5 | |
General | Temperature | Operation: -10°C ~ 50°C (14°F~122°F) |
Humidity | 5 to 90% | |
Power | 12VDC 1.5A ; PoE (IEEE 802.3af ) with Class 3 | |
Power Consumption | Max. 7W | |
Dimension (WxHxD) | 74.95mm x 59.3mm x 153.5mm (2.95” x 2.34” x 6.04”) |
|
Weight | Net: 435g (0.96 lb) Gross: 1085g (2.4 lb) |
|
Certification | Safety: LVD EMC: FCC, CE |
|
Warranty | 3 years |
