Feature

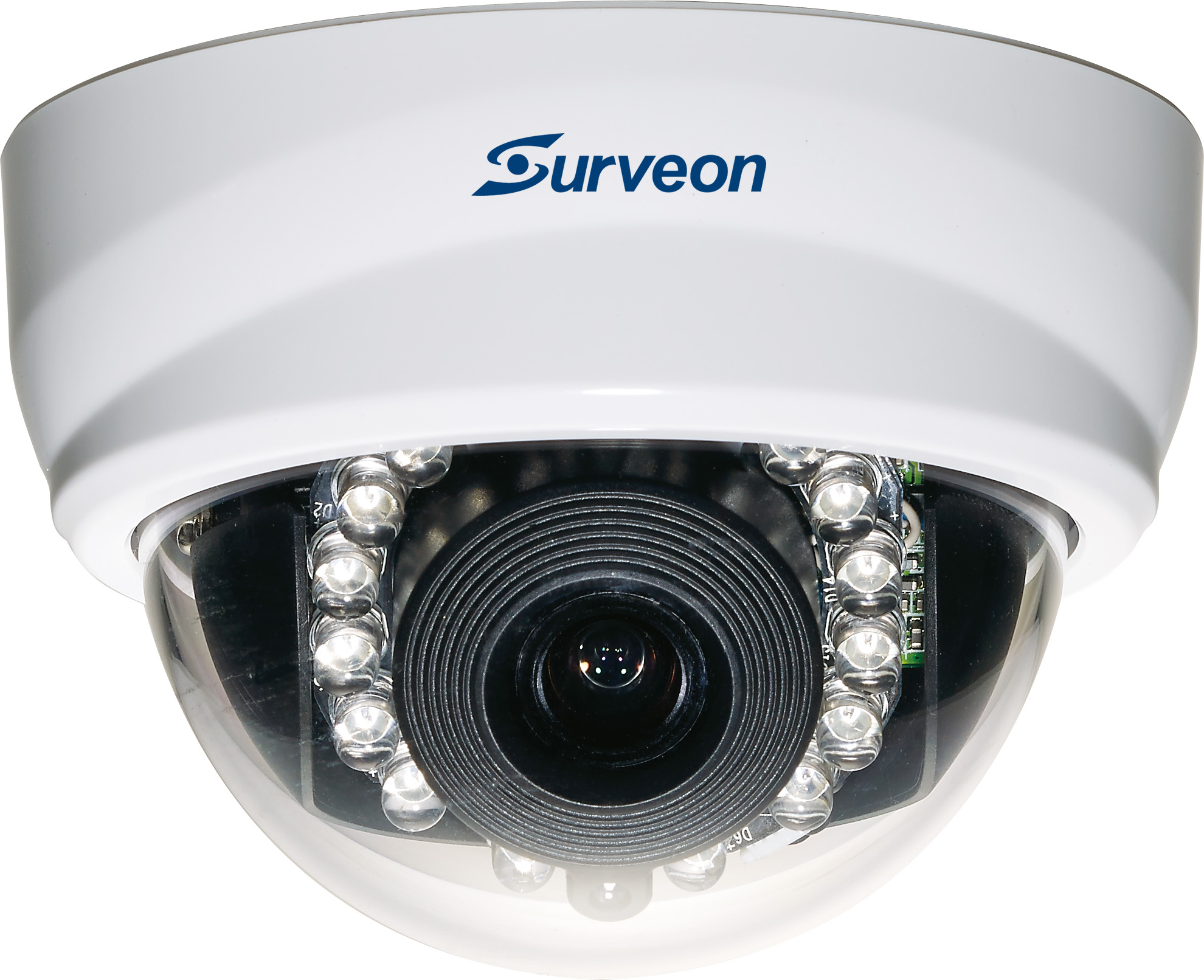

The CAM5321S4 PT indoor dome camera is part of Surveon Professional Network Camera Series. The CAM5321S4 provides 1920 x 1080 (1080P) resolution at 30fps and the 200° pan and 70°tilt for a wide range of view. The advanced functions include WDR, ROI video cropping* and 3D noise reduction. Its built-in infrared LEDs and removable IR-cut filter allow 24/7 operations even in the low lux condition. The CAM5321S4 also comes with the Power over Ethernet, local storage, and dual streams at H.264 high profile, MPEG4 and MJPEG simultaneously. It is the ideal choice for professional surveillance in the dynamic indoor applications.
- Megapixel Progressive Scan Sensor
- Up to 1920 x 1080 Video Resolution
- H.264/MPEG4/MJPEG 2 Simultaneous Video Streams
- Advanced ISP Function (WDR, ROI*, 3D De-noise)
- MicroSD Local Storage for Alarm Capture
- PoE (IEEE 802.3af) and Day/Night ICR Filter
- Built-in IR Illuminators, Effective Up to 10 Meters
Technical Specification
| Camera | Image Sensor | 1/2.7” megapixel progressive scan CMOS |
|---|---|---|
| Lens | 4.0 mm, F2.0 | |
| SNR | 48dB | |
| WDR | Yes | |
| Day/Night ICR | Yes | |
| IR LED | Yes (10M) | |
| Min. Illumination | 0.1 Lux @ F2.0 (B/W) 0.5 Lux @ F2.0 (Color) |
|
| Iris Control | Fixed | |
| Shutter Time | 1/30 ~ 1/50,000 s | |
| Viewing Angle | Diagonal: 62° | |
| Camera Angle Adjustment |
Pan : 200° Tilt : 70° |
|
| Pan/Tilt/Zoom Functionalities |
Support auto tracking function, Support multi - direction movement |
|
| Video | Video Compression | H.264/MPEG-4/MJPEG |
| Resolution | Up to 1920 x 1080 | |
| Frame Rate | 30 fps at 1080P (1920 x 1080) 30 fps at SXGA (1280 x 1024) 30 fps at WXGA (1280 x 800) 30 fps at VGA (640 x 480) 30 fps at QVGA (320 x 240) |
|
| Video Stream | Dual stream at H.264, MPEG-4, and MJPEG simultaneously | |
| Bit Rate | 64K ~ 10Mbps, VBR, CBR, controller frame rate and quality | |
| Video Control | AGC (Auto Gain Control), AWB (Auto White Balance), AES (Auto Electronic Shutter), WDR, 3D De-noise, ROI*, image adjustment | |
| Intelligent video | Motion detection | |
| Video Jack | N/A | |
| Audio | Built-in MIC | Yes |
| Audio Compression | G.711/AMR/AAC | |
| Audio Input | N/A | |
| Audio Output | N/A | |
| I/O and Event Management | Alarm In | N/A |
| Alarm Out | N/A | |
| Video Buffer | N/A | |
| Event Action | Send snapshot or video clip by email, record to local storage | |
| Network | Supported Protocols | TCP/IP, HTTP, SMTP, FTP, DDNS, UPnP, Telnet, NTP, PPPoE, DNS, DHCP, RTSP, Samba |
| Ethernet | 10/100 Base-T / RJ45 | |
| System | Local Storage | microSD x 1 (Class 4/Class 6 only) |
| RS-485 | N/A | |
| USB | N/A | |
| SDK | Surveon SDK 2.0 | |
| Viewing System | OS | Microsoft Windows XP/Vista/Win7/Win8 |
| Browser | IE 6.x or above, Firefox, Chrome, Safari | |
| Software | Surveon VMS 2.5 | |
| General | Temperature | Operation: 0°C~ 40°C (32°F~104°F) |
| Humidity | 85% RH | |
| Power | 12VDC 1.5A; PoE (IEEE 802.3af ) with Class 3 | |
| Power Consumption | Max. 8W | |
| Dimension (WxHxD) | Height : 63mm, Diameter : 92mm | |
| Weight | NET. 400g | |
| Certification | EMI & Safety: CE, FCC | |
| Warranty | 2 years |
