Feature

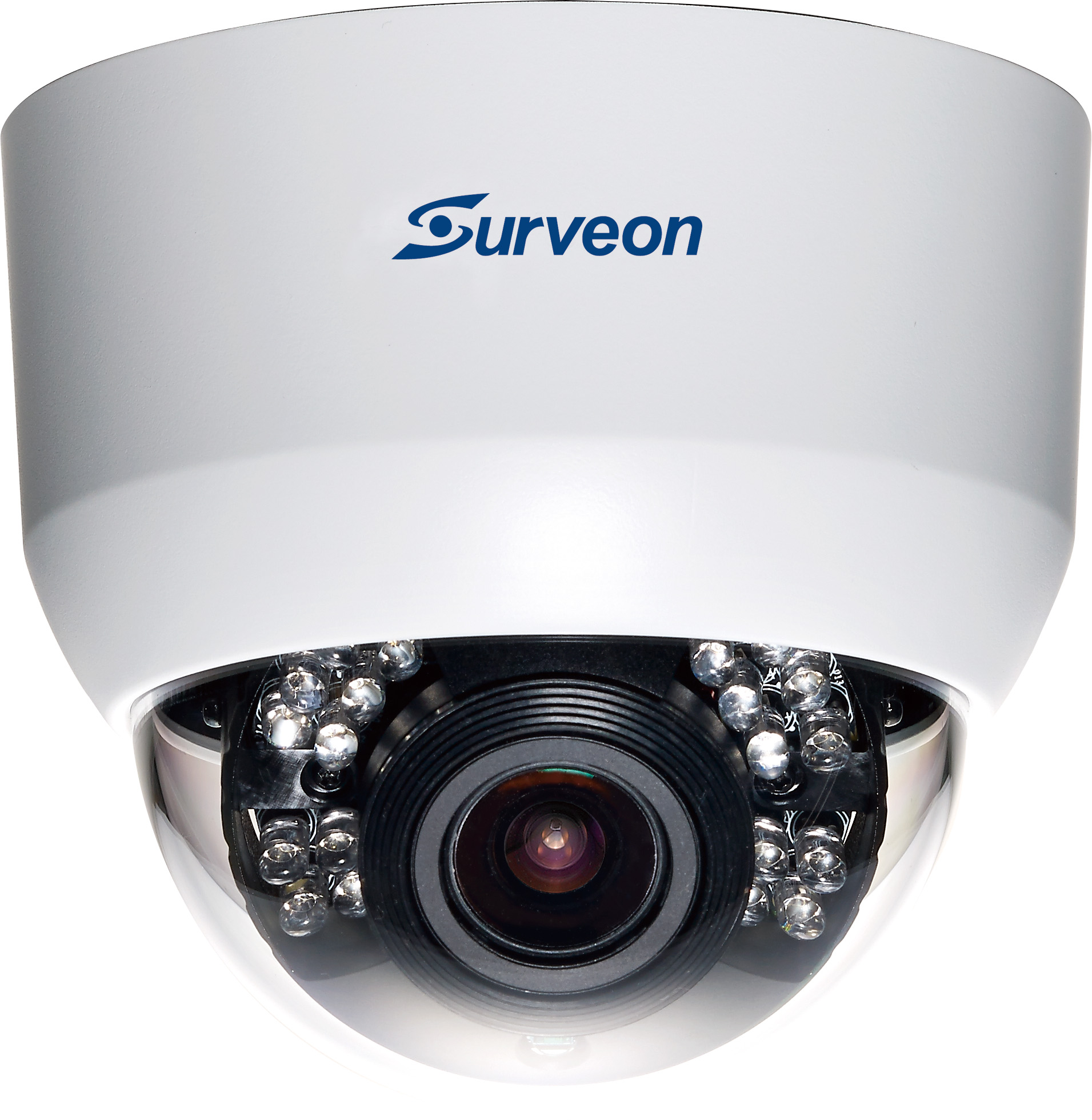

The CAM4311S2 indoor dome camera is part of Surveon Professional Network Camera Series. Equipped with the SONY Exmor sensor, the CAM4311S2 provides1920 x 1080 (1080P) resolution at 30fps and dual streams at H.264 high profile, MPEG-4 and MJPEG simultaneously.  The advanced functions include WDR, ROI video cropping, 2D/3D noise reduction, and edge enhancement.  The built-in infrared LEDs and removable IR-cut filter allow 24/7 operations even in the low lux condition.  The CAM4311S2 also comes with the Power over Ethernet and 3-axis adjustment for flexible hardware installation.  It is the excellent choice for professional surveillance in the indoor applications.

  • Megapixel Progressive Scan Sensor
  • Up to 1920 x 1080 Video Resolution
  • H.264/MPEG4/MJPEG 2 Simultaneous Video Streams
  • Support Surveon Video Intelligence
  • Advanced ISP Function (WDR, ROI, Luminance Control, 2D/3D
    De-noise, Edge Enhancement, Lens Correction)
  • PoE (IEEE 802.3af) and Day/Night IR-Cut Filter
  • Built-in IR Illuminators, Effective Up to 10 Meters
  • 3-Axis Support





Technical Specification

Camera Image Sensor 1/2.8” megapixel SONY Exmor CMOS
Lens f2.8 mm, F1.8
SNR 48dB
WDR Yes
Day/Night ICR Yes
IR LED Yes (10M)
Min. Illumination 0.01 Lux @ F1.8 (B/W), 0.1 Lux @ F1.8 (Color)
Iris Control Fixed
Shutter Time 1/1 ~ 1/1,000,000 s
Viewing Angle Diagonal: 135°, Horizontal: 105°, Vertical: 87°
Camera Angle
Adjustment
Pan 0º ~340º
Tilt 20º ~90º
Rotate ±170°
Pan/Tilt/Zoom
Functionalities
N/A
Video Video Compression H.264/MPEG-4/MJPEG
Resolution Up to 1920 x 1080
Frame Rate 30 fps at 1080P (1920 x 1080)
30 fps at SXGA (1280 x 1024)
30 fps at HD720 (1280 x 720)
30 fps at D1 (720 x 480)
30 fps at VGA (640 x 480)
30 fps at QVGA (320 x 240)
Video Stream Dual stream at H.264, MPEG-4, and MJPEG simultaneously
Bit Rate 32K ~ 10Mbps, VBR, CBR, controller frame rate and quality
Video Control AGC (Auto Gain Control), AWB (Auto White Balance), AES (Auto Electronic Shutter), Luminance Control, WDR, 2D/3D De-noise, ROI, Edge Enhancement, Lens Correction, image adjustment
Surveon Video Intelligent Motion detection, tampering detection (blocked, redirected, defocused, or spray-painted)
Video Jack N/A
Audio Built-in MIC Yes
Audio Compression 16KHz, ADPCM/G.711
Audio Input 3.5mm phone jack (optional)
Audio Output 3.5mm phone jack (optional)
I/O and Event Management Alarm In 1, terminal block (optional)
Alarm Out 1, terminal block (optional)
Video Buffer 5 second pre-alarm, 30 second post-alarm
Event Action Send snapshot or video clip by FTP or email, record to NAS, trigger DO
Network Supported Protocols IPv4, IPv6, ARP, TCP, UDP, ICMP, IGMP, DHCP, NTP, DDNS, SMTP, SNMP, FTP, HTTP, HTTPS, CIFS, PPPoE, UPnP, RTP, RTSP, RTCP, 3GPP
Ethernet 10/100 Base-T / RJ45
System Local Storage microSD/SDHC x 1 (Class 4/Class 6 only)
RS-485 N/A
USB N/A
SDK Surveon SDK 2.0
Viewing System OS Microsoft Windows XP/Vista/7
Browser Microsoft IE 6.0 or above
Software Surveon VMS 2.5
General Temperature Operation: -10°C ~ 50°C (14°F~122°F)
Humidity 5 to 90%
Power PoE (IEEE 802.3af ) with Class 3
Power Consumption Max. 6.5W
Dimension (WxHxD) ø110mm x 100mm (H)
Weight Net: 345g
Gross: 585g
Certification Safety: LVD
EMC: FCC, CE
Warranty 3 years
* CAM4311S2: When there's a direct lighting in the scene, the refractions may occur.
