Feature

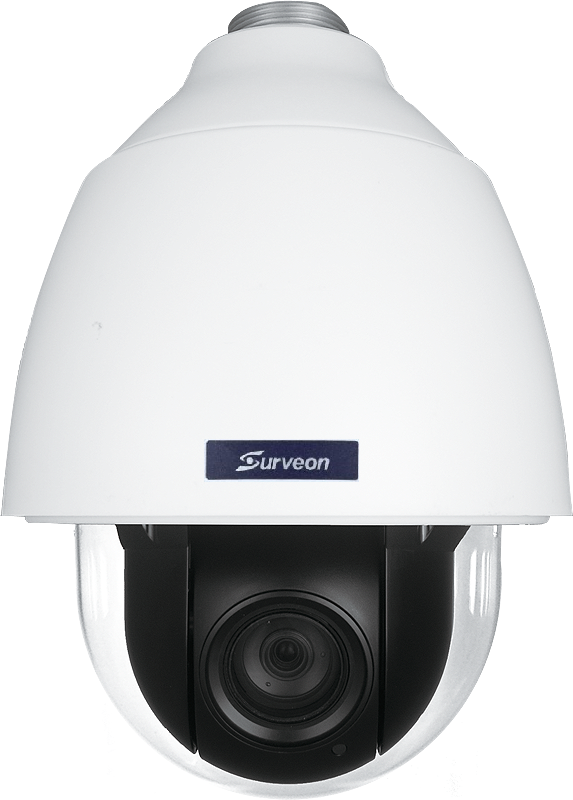

The CAM6471EZ-5 H.265 outdoor speed dome camera is part of Surveon Premium Network Camera Series. Equipped with the SONY Exmor CMOS sensor, the CAM6471EZ-5 provides 2048 x 1536 resolution at 30fps, a 360° high-speed pan and tilt base, and a 30x optical zoom lens. The advanced functions include Electronic Image Stabilizer (EIS), WDR, autofocus, 2D/3D noise reduction, and Day & Night with IR-cut filter. The CAM6471EZ-5 also comes with the IK10, IP66-rated weatherproof housing for withstanding rain and dust, and wide temperature.  It is the excellent choice for high quality surveillance in the demanding outdoor applications.

  • Megapixel SONY Progressive Scan Sensor
  • Up to 2048 x 1536 30FPS Video Resolution
  • Electronic Image Stabilizer (EIS)
  • H.265/H.264/MJPEG Simultaneous Video Streams
  • Motion Detection & Surveon Video Intelligent
  • Day/Night Function with IR-Cut Filter
  • 30X Optical Zoom and Auto Focus
  • IP66, IK10 and Wide Temperature for Outdoor Application
  • Triple power support (PoE+ / DC12V/ AC24V)
  • BNC Analog Output for installation support
  • Support RS-485
  • Support Auto Tracking Function (Optional)






Technical Specification

Camera Image Sensor 1/2.8" megapixel Sony Progressive CMOS
Lens f4.3-129 mm autofocus lens, F1.6
SNR 50dB
WDR Yes
Day/Night ICR Yes
IR LED N/A
Min. Illumination 0.002 lux (B/W)
0.04 lux (Color)
Iris Control Automatic / Manual IRIS control
Shutter Time 1/1 ~ 1/10,000 s
Viewing Angle Horizontal FOV: 62° (wide),2° (tele)
Vertical FOV: 47° (wide),2° (tele)
Camera Angle
Adjustment
Pan: 360° endless, 5°–400°/s
Tilt: -10° ~ +190°, 5°–400°/s
Pan/Tilt/Zoom
Functionalities
1. 180° Horizontal Instant Flip
2. 256 preset positions
3. Preset position auto scanning
4. 30x optical zoom and 10x digital zoom, total 300x zoom
5. Auto tracking function (optional)
Video Video Compression H.265/H.264/MJPEG
Resolution Up to 2048 x 1536
Frame Rate 30 fps at 3 MP (2048 x 1536)
60 fps at 1080P (1920 x 1080)
60 fps at SXGA (1280 x 1024)
60 fps at 720P (1280 x 720)
60 fps at D1 (720 x 480)
60 fps at VGA (640 x 480)
60 fps at QVGA (320 x 240)
Video Stream Up to 4 individually configurable streams in
H.265/H.264/MJPEG
Configurable resolution/frame rate/bandwidth
LBR/VBR/CBR in H.265/H.264
Bit Rate 64K ~ 10Mbps, VBR, CBR, controller frame rate and quality
Video Control AGC (Auto Gain Control), AWB (Auto White Balance), BLC (Back Light Compensation), 2D/3D Noise Reduction, Digital Image Stabilization, Image adjustment, Privacy zone: On/Off (5 zones)
Intelligent Video Motion detection
BNC Support Yes
Video Jack N/A
Audio Built-in MIC N/A
Audio Compression G.711/G.726/AAC/LPCM
Audio Input/Output Line In, terminal block
I/O
and Event
Management
Connectors RJ45, Alarm in x4, Alarm out x2, Terminal Block
DC12V , AC24V Terminal Block
Audio in, out Terminal Block
CVBS Connector, RS485 Terminal Block
Video Buffer N/A
Event Action Send snapshot or video clip by FTP or email, record to local storage, trigger DO
Network Security User Authentication/HTTPS/IP Filter/IEEE 802.1X
Supported Protocols ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS
Ethernet RJ-45, 1Gbps Ethernet
System Local Storage MicroSD/SDXC/SDHC
RS-485 Yes
USB N/A
SDK Surveon SDK 2.0
Viewing System OS Microsoft Windows 7/8
Browser IE 8.x or above, Safari, Chrome (via IE Tab)
Software Surveon VMS 2.5
General Temperature Operation: -40°C~ 50°C (-40°F~122°F)
Humidity 10 to 90%, No Condensation
Power 802.3at PoE+ / DC 12V / AC 24V
Power Consumption Max. 25.4W (w/o Heater )
Max. 57W (w/ Heater )
Dimension (WxHxD) ø192mm x 282mm (H)
ø7.5” x 11.1" (H)
Weight 2.9kg
Certification CE / FCC / RoHS / IP66 / IK10
Warranty 2 years
