Feature

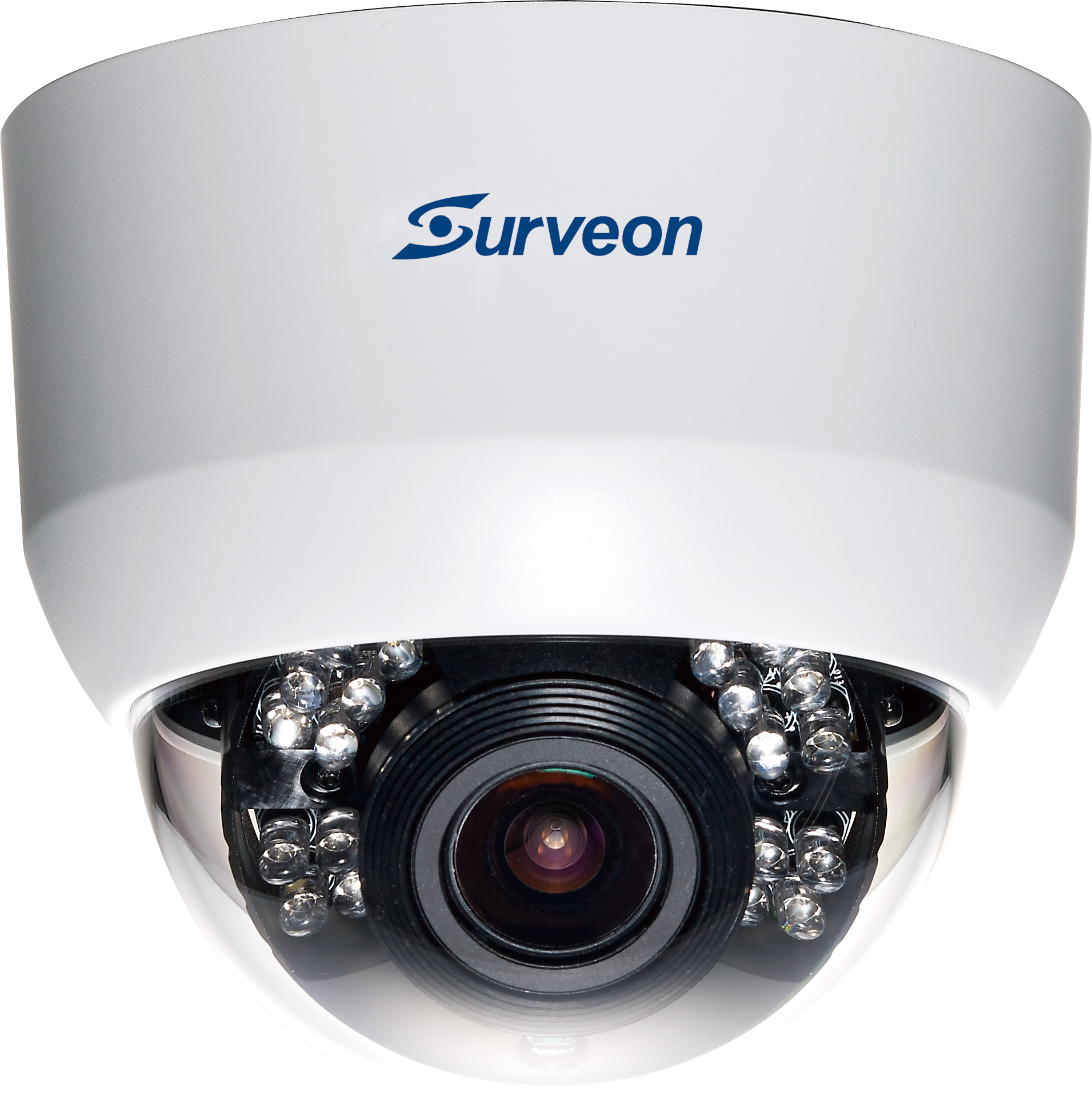

The CAM4411S2 indoor dome camera is part of Surveon Professional Network Camera Series. The CAM4411S2 provides 2048 x 1536 (QXGA) resolution at 25fps and dual streams at H.264 high profile, MPEG-4 and MJPEG simultaneously. The advanced functions include WDR, ROI video cropping, 2D/3D noise reduction, and edge enhancement. The built-in infrared LEDs and removable IR-cut filter allow 24/7 operations even in the low lux condition. The CAM4411S2 also comes with the Power over Ethernet and 3-axis adjustment for flexible hardware installation. It is the excellent choice for professional surveillance in the indoor applications.
- 3 Megapixel Progressive Scan Sensor
- Up to 2048x1536 25PFS
- H.264/MPEG4/MJPEG 2 Simultaneous Video Streams
- Support Surveon Video Intelligence
- Advanced ISP Function (WDR, ROI, 2D/3D De-noise, Edge Enhancement)
- PoE (IEEE 802.3af) and Day/Night IR-Cut Filter
- Built-in IR Illuminators, Effective Up to 10 Meters
- 3-Axis Support
Technical Specification
| Camera | Image Sensor | 1/3” megapixel progressive scan CMOS |
|---|---|---|
| Lens | 4411S2: f2.8 mm, F1.8/ 4411S3: f3.6 mm, F1.8 4411S4: f4.2 mm, F1.8/ 4411S6: f6.0 mm, F2.0 |
|
| SNR | 48dB | |
| WDR | Yes | |
| Day/Night ICR | Yes | |
| IR LED | Yes (10M) | |
| Min. Illumination | 0.01 Lux @ F1.8 (B/W) 0.1 Lux @ F1.8 (Color) |
|
| Iris Control | Fixed | |
| Shutter Time | 1/1 ~ 1/10,000 s | |
| Viewing Angle | 4411S2: Diagonal: 128°, Horizontal: 98°,
Vertical:81.5° 4411S3: Diagonal: 100°, Horizontal: 78°, Vertical: 62.5° 4411S4: Diagonal: 89°, Horizontal: 71°, Vertical: 49.5° 4411S6: Diagonal: 60.5°, Horizontal: 52.4°, Vertical: 29° |
|
| Camera Angle Adjustment |
Pan 0º ~340º, Tilt 20º ~90º, Rotate ±170º | |
| Pan/Tilt/Zoom Functionalities |
N/A | |
| Video | Video Compression | H.264/MPEG-4/MJPEG |
| Resolution | Up to 2048 x 1536 | |
| Frame Rate | 25 fps at QXGA (2048 x 1536) 30 fps at 1080P (1920 x 1080) 30 fps at SXGA (1280 x 1024) 30 fps at HD720 (1280 x 720) 30 fps at D1 (720 x 480) 30 fps at VGA (640 x 480) 30 fps at QVGA (320 x 240) |
|
| Video Stream | Dual stream at H.264, MPEG-4, and MJPEG simultaneously | |
| Bit Rate | 32K ~ 10Mbps, VBR, CBR, controller frame rate and quality | |
| Video Control | AGC (Auto Gain Control), AWB (Auto White
Balance), AES (Auto Electronic Shutter), BLC (Back Light Compensation), WDR, 2D/3D De-noise, ROI, Edge Enhancement, image adjustment |
|
| Intelligent Video | Motion detection, tampering detection (blocked, redirected, defocused, or spray-painted) | |
| Video Jack | N/A | |
| Audio | Built-in MIC | Yes |
| Audio Compression | 16KHz, ADPCM/G.711 | |
| Audio Input | 3.5mm phone jack (optional) | |
| Audio Output | 3.5mm phone jack (optional) | |
| I/O and Event Management | Alarm In | 1, terminal block (optional) |
| Alarm Out | 1, terminal block (optional) | |
| Video Buffer | 5 second pre-alarm, 30 second post-alarm | |
| Event Action | Send snapshot or video clip by FTP or email, record to NAS, record to local storage, trigger DO | |
| Network | Supported Protocols | IPv4, IPv6, ARP, TCP, UDP, ICMP, IGMP, DHCP, NTP, DDNS, SMTP, SNMP, FTP, HTTP, HTTPS, CIFS, PPPoE, UPnP, RTP, RTSP, RTCP, 3GPP |
| Ethernet | 10/100 Base-T / RJ45 | |
| System | Local Storage | microSD/SDHC x 1 |
| RS-485 | N/A | |
| USB | N/A | |
| SDK | Surveon SDK 2.0 | |
| Viewing System | OS | Microsoft Windows 7/8 |
| Browser | Microsoft IE 8.0 or above | |
| Software | Surveon VMS 2.5 | |
| General | Temperature | Operation: -10°C ~ 50°C (14°F~122°F) |
| Humidity | 5 to 90% | |
| Power | PoE (IEEE 802.3af ) with Class 3 | |
| Power Consumption | Max. 7W | |
| Dimension (WxHxD) | ø110mm x 100mm (H) | |
| Weight | Net: 345g Gross: 585g |
|
| Certification | Safety: LVD EMC: FCC, CE |
|
| Warranty | 3 years |
*Support local recording but no backup to NVR.
