Feature

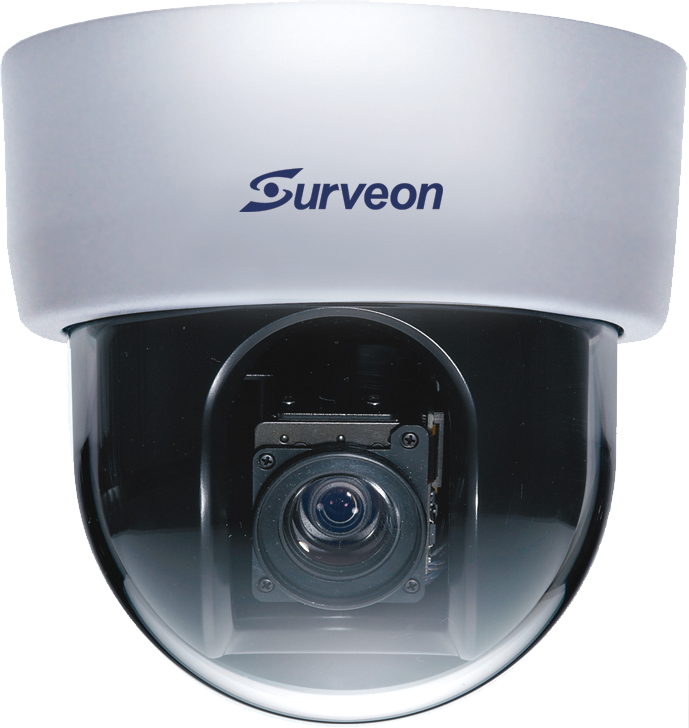

The CAM5330SZ PTZ indoor dome camera is part of Surveon Premium Network Camera Series. The CAM5330SZ provides 1920 x 1080 (1080P) resolution at 30fps, the 390° pan and 95°tilt for a wide range of view, and a 10x optical zoom lens. The advanced functions include WDR, ROI video cropping* and 3D noise reduction. The CAM5330SZ also comes with the autofocus lens, Power over Ethernet, local storage, and dual streams at H.264 high profile, MPEG4 and MJPEG simultaneously. It is the ideal choice for high quality surveillance in the dynamic indoor applications.
- Megapixel Progressive Scan Sensor
- Up to 1920 x 1080 Video Resolution
- H.264/MPEG4/MJPEG 2 Simultaneous Video Streams
- Advanced ISP Function (WDR, ROI*, 3D De-noise)
- SD Local Storage for Alarm Capture
- Power over Ethernet (IEEE 802.3af)
- 10X Optical Zoom and Auto Focus
Technical Specification
| Camera | Image Sensor | 1/2.7” megapixel progressive scan CMOS |
|---|---|---|
| Lens | f4.9~ 49mm autofocus lens, F1.8~3.0 | |
| SNR | 48dB | |
| WDR | Yes | |
| Day/Night ICR | N/A | |
| IR LED | N/A | |
| Min. Illumination | 0.1 Lux @ F2.0 (B/W) 0.5 Lux @ F2.0 (Color) |
|
| Iris Control | DC Drive | |
| Shutter Time | 1/30 ~ 1/50,000 s | |
| Viewing Angle | Diagonal: 66.6° ~ 7.2° | |
| Camera Angle Adjustment |
Pan : 390°(-195°~195°)±1°, Pan speed : 1~200°/Sec Tilt : 95°(-5°~ 90°)±1°, Tilt speed : 1~120°/Sec |
|
| Pan/Tilt/Zoom Functionalities |
10x optical zoom , 4x digital zoom (Smart focus / Auto focus / Step focus), Support auto tracking function, Support multi - direction movement | |
| Video | Video Compression | H.264/MPEG-4/MJPEG |
| Resolution | Up to 1920 x 1080 | |
| Frame Rate | 30 fps at 1080P (1920 x 1080) 30 fps at SXGA (1280 x 1024) 30 fps at WXGA (1280 x 800) 30 fps at VGA (640 x 480) 30 fps at QVGA (320 x 240) |
|
| Video Stream | Dual stream at H.264, MPEG-4, and MJPEG simultaneously | |
| Bit Rate | 64K ~ 10Mbps, VBR, CBR, controller frame rate and quality | |
| Video Control | AGC (Auto Gain Control), AWB (Auto White Balance), AES (Auto Electronic Shutter), WDR, 3D De-noise, ROI*, image adjustment | |
| Intelligent video | Motion detection | |
| Video Jack | Video out x1 | |
| Audio | Built-in MIC | N/A |
| Audio Compression | G.711/AMR/AAC | |
| Audio Input | 3.5mm phone jack | |
| Audio Output | N/A | |
| I/O and Event Management | Alarm In | 1, terminal block |
| Alarm Out | 1, terminal block | |
| Video Buffer | N/A | |
| Event Action | Send snapshot or video clip by email, record to local storage | |
| Network | Supported Protocols | TCP/IP, HTTP, SMTP, FTP, DDNS, UPnP, Telnet, NTP, PPPoE, DNS, DHCP, RTSP, Samba |
| Ethernet | 10/100 Base-T / RJ45 | |
| System | Local Storage | SD Card slot x 1 |
| RS-485 | N/A | |
| USB | USB 2.0 x 1 | |
| SDK | Surveon SDK 2.0 | |
| Viewing System | OS | Microsoft Windows XP/Vista/Win7/Win8 |
| Browser | IE 6.x or above, Firefox, Chrome, Safari | |
| Software | Surveon VMS 2.5 | |
| General | Temperature | Operation: 0°C~ 40°C (32°F~104°F) |
| Humidity | 85% RH | |
| Power | 12VDC 1.5A; PoE (IEEE 802.3af ) with Class 3 | |
| Power Consumption | Max. 10W | |
| Dimension (WxHxD) | Height : 128mm, Diameter : 130mm | |
| Weight | NET. 960g | |
| Certification | EMI & Safety: CE, FCC | |
| Warranty | 2 years |
