Feature

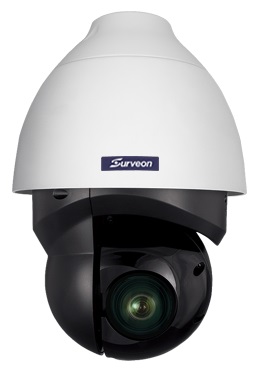

The CAM6471LZ-5 H.265 IR speed dome camera is part of Surveon Premium Network Camera Series. Equipped with the SONY Progressive Scan CMOS sensor, the CAM6471LZ-5 provides 2048 x 1536 resolution at 30FPS and a 30x optical zoom lens. The advanced functions include Electronic Image Stabilizer (EIS), WDR, autofocus, 2D/3D noise reduction, and Day & Night with IR-cut filter. The removable IR-cut filter allows 24/7 operations even in the low lux condition. The CAM6471LZ-5 also comes with IP66-rated weatherproof housing for wide temperature outdoor application.
- Megapixel SONY Progressive Scan Sensor
- Up to 2048 x 1536 30FPS Video Resolution
- Electronic Image Stabilizer (EIS)
- H.265/H.264/MJPEG Simultaneous Video Streams
- Motion Detection & Surveon Video Intelligent
- Day/Night Function with IR-Cut Filter
- 30X Optical Zoom and Auto Focus
- IR Distance Up to 200m
- IP66 and Wide Temperature for Outdoor Application
- Triple power support (PoE+ / DC12V/ AC24V)
- BNC Analog Output for installation support
- Support RS-485
- Support Auto Tracking Function (Optional)
Technical Specification
| Camera | Image Sensor | 1/2.8” megapixel SONY Exmor CMOS |
|---|---|---|
| Lens | f4.3-129 mm autofocus lens, F1.6 | |
| SNR | 50dB | |
| WDR | Yes, High Dynamic Range (Up to 120 dB) | |
| EIS | Yes | |
| Day/Night ICR | Yes | |
| IR LED | Yes, 200M | |
| Min. Illumination | 0.002 lux (B/W) 0.04 lux (Color) |
|
| Iris Control | Automatic / Manual IRIS control | |
| Shutter Time | 1/1 ~ 1/10,000 s | |
| Viewing Angle | Horizontal FOV: 62° (wide),2° (tele) Vertical FOV: 47° (wide),2° (tele) |
|
| Camera Angle Adjustment |
Pan: 360° endless, 5°–400°/s Tilt: -10° ~ +190°, 5°–400°/s |
|
| Pan/Tilt/Zoom Functionalities |
1. 180° Horizontal Instant Flip 2. 256 preset positions 3. Preset position auto scanning 4. 30x optical zoom and 10x digital zoom, total 300x zoom 5. Auto tracking function (optional) |
|
| Video | Video Compression | H.265/H.264/MJPEG |
| Resolution | Up to 2048 x 1536 | |
| Frame Rate | 30 fps at 3 MP (2048 x 1536) 60 fps at 1080P (1920 x 1080) 60 fps at SXGA (1280 x 1024) 60 fps at 720P (1280 x 720) 60 fps at D1 (720 x 480) 60 fps at VGA (640 x 480) 60 fps at QVGA (320 x 240) |
|
| Video Stream | Up to 4 individually configurable streams in H.265/H.264/MJPEG Configurable resolution/frame rate/bandwidth LBR/VBR/CBR in H.265/H.264 |
|
| Bit Rate | 64K ~ 10Mbps, VBR, CBR, controller frame rate and quality | |
| Video Control | AGC (Auto Gain Control), AWB (Auto White Balance), BLC (Back Light Compensation), 2D/3D Noise Reduction, Digital Image Stabilization, Image adjustment, Privacy zone: On/Off (5 zones) | |
| Intelligent Video | Motion detection | |
| BNC Support | Yes | |
| Video Jack | N/A | |
| Audio | Built-in MIC | N/A |
| Audio Compression | G.711/G.726/AAC/LPCM | |
| Audio Input/Output | Line In, terminal block | |
| I/O and Event Management |
Connector | RJ45, Alarm in x4, Alarm out x2, Terminal Block DC12V , AC24V Terminal Block Audio in, out Terminal Block CVBS Connector, RS485 Terminal Block |
| Video Buffer | N/A | |
| Event Action | Send snapshot or video clip by FTP or email, record to local storage, trigger DO | |
| Network | Security | User Authentication/HTTPS/IP Filter/IEEE 802.1X |
| Supported Protocols | ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS |
|
| Ethernet | RJ-45, 10/100M | |
| System | Local Storage | MicroSD/SDHC/SDXC |
| RS-485 | Yes | |
| USB | N/A | |
| SDK | Surveon SDK 2.0 | |
| Viewing System | OS | Microsoft Windows 7/8 or above |
| Browser | IE 8.x or above, Safari, Chrome (via IE Tab) | |
| Software | Surveon VMS 2.5 | |
| General | Temperature | Operation: -40°C~ 50°C (-40°F~122°F) |
| Humidity | 10% ~ 90%, No Condensation | |
| Power | 802.3at PoE+ / DC 12V / AC 24V | |
| Power Consumption | Max. 39W (w/o Heater ) Max. 57W (w/ Heater ) |
|
| Dimension (WxHxD) | Ø 207.4 x 300.4 mm with Sunshield | |
| Weight | 3.8kg | |
| Certification | CE / FCC / RoHS / IP66 | |
| Warranty | 2 years |
