Feature

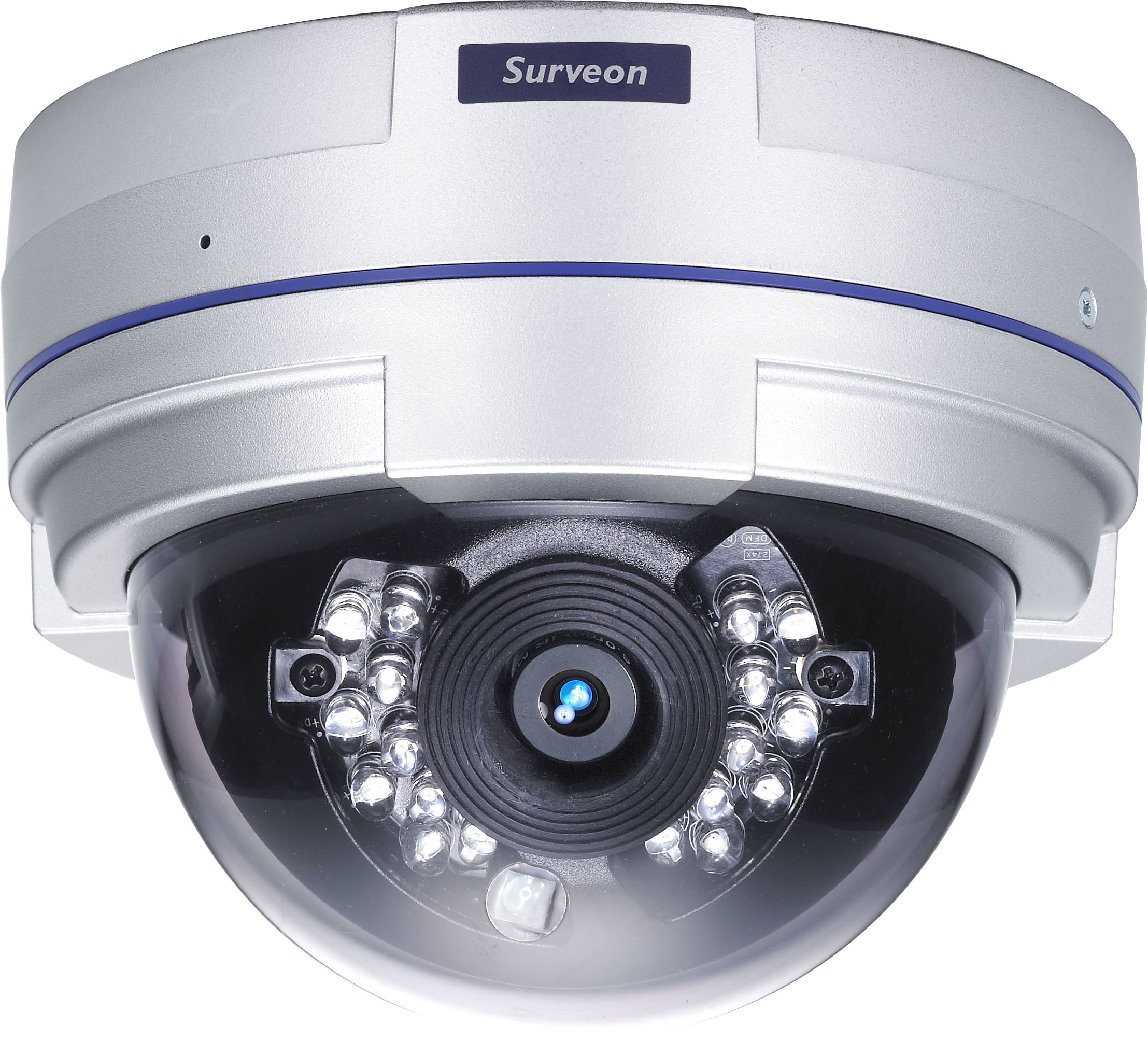

Featured with 2 megapixel sensor inside and dome housing design, CAM4310 network camera is the ultimate solution for an ideal ceiling-mount design for minimal aesthetic intrusion. With built-in infrared LEDs, CAM4310 allows surveillance to operating 24/7 even in low lux condition. It is an ideal solution for indoor applications, such as stadiums, airports, shopping malls, and banks, the megapixel range will extend your capability to protect the building, the people, and your business.
- Full HD & Real Time Network Camera
- Up to 1920 x 1080 Video Resolution
- H.264/MPEG4/MJPEG 2 Simultaneous Video Streams
- Support Surveon Video Intelligence
- MicroSD/SDHC Local Storage for Alarm Capture
- Power over Ethernet (IEEE 802.3af )
Technical Specification
| Camera | Image Sensor | 1/2.7" 2 megapixel progressive scan CMOS |
|---|---|---|
| Lens | 4.2 mm, F1.8 | |
| SNR | 48dB | |
| WDR | N/A | |
| Day/Night ICR | N/A | |
| IR LED | N/A | |
| Min. Illumination | 0.01 Lux @ F1.8 (B/W) 0.1 Lux @ F1.8 (Color) |
|
| Iris Control | Fixed | |
| Shutter Time | 1/7.5 ~ 1/100,000 s | |
| Viewing Angle | Diagonal:89° Horizontal:71° Vertical:49.5° |
|
| Camera Angle Adjustment |
Pan 0° ~340° Tilt 30°~90° |
|
| Pan/Tilt/Zoom Functionalities |
N/A | |
| Video | Video Compression | H.264/MPEG-4/MJPEG |
| Resolution | Up to 1920 x 1080 | |
| Frame Rate | 30 fps at 1080P (1920 x 1080) 30 fps at SXGA (1280 x 1024) 30 fps at HD720 (1280 x 720) 30 fps at VGA (640 x 480) 30 fps at QVGA (320 x 240) |
|
| Video Stream | Video Stream Dual stream at H.264, MPEG-4, and MJPEG Simultaneously | |
| Bit Rate | 64K ~ 10Mbps, VBR, CBR, controller frame rate and quality | |
| Video Control | AGC (Auto Gain Control), AWB (Auto White Balance), AES (Auto Electronic Shutter), BLC (Back Light Compensation), image adjustment | |
| Surveon Video Intelligent | Motion detection |
|
| Video Jack | N/A | |
| Audio | Built-in MIC | N/A |
| Audio Compression | 16KHz, ADPCM/G.711 | |
| Audio Input | 3.5mm phone jack (optional) | |
| Audio Output | 3.5mm phone jack (optional) | |
| I/O and Event Management | Alarm In | 2, terminal block (optional) |
| Alarm Out | 1, terminal block (optional) |
|
| Video Buffer | 5 second pre-alarm, 30 second post-alarm | |
| Event Action | Send snapshot or video clip by FTP or email, record to NAS, record to local storage, trigger DO | |
| Network | Supported Protocols | IPv4, ARP, TCP, UDP, ICMP, IGMP, DHCP, NTP, DDNS, SMTP, FTP, HTTP, CIFS, PPPoE, UPnP, RTP, RTSP, RTCP, 3GPP |
| Ethernet | 10/100 Base-T / RJ45 | |
| System | Local Storage | microSD/SDHC x 1 (Class 4/Class 6 only) |
| RS-485 | 1 (2 pin on terminal block) (optional) |
|
| USB | N/A | |
| SDK | Surveon SDK 2.0 | |
| Viewing System | OS | Microsoft Windows XP/Vista/7 |
| Browser | Microsoft IE 6.0 or above | |
| Software | Surveon VMS 2.4.1 | |
| General | Temperature | Operation: -10°C~ 50°C (14°~122°F) Storage: -30°C ~ 60°C (-22°F~140°F) |
| Humidity | 5 to 90% | |
| Power | 12VDC 1.5A；PoE (IEEE 802.3af) with Class 3 | |
| Power Consumption | Max. 5W | |
| Dimension (WxHxD) | ø128.8mm x 98.6mm(H) ø5.07" x 3.88"(H) |
|
| Weight | Net: 620g (1.37lb.) Gross: 1290g (2.85lb.) |
|
| Certification | Safety: LVD EMC: FCC, CE, GOST, KCC |
|
| Warranty | 3 years |
