Feature

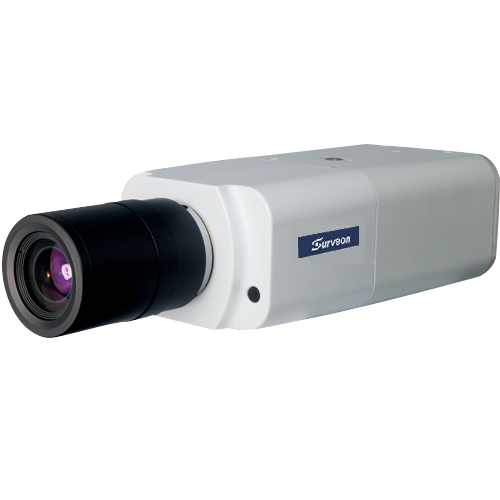

The CAM2441HC-5 H.265 indoor camera is part of Surveon Premium Network Camera Series. The CAM2441HC-5 provides 2720x1536 resolution at 30fps, H.265/H.264/MJPEG Simultaneous , 3D Motion Detection & Surveon Video Intelligent, Day/Night Function with IR-Cut Filter, Triple power support (PoE+/ DC12V/ AC24V). BNC Analog Output for installation support makes installation easier. RS-485 and Auto Back Focus Support(Optional). It is the excellent choice for high quality surveillance in the demanding outdoor applications.
- 4 Megapixel Progressive Scan CMOS Sensor
- Up to 2720x1536 30FPS Video Resolution
- H.265/H.264/MJPEG Simultaneous Video Streams
- 3D Motion Detection & Surveon Video Intelligent
- Day/Night Function with IR-Cut Filter
- Motion Compensated Noise Reduction (MCTF)
- Triple power support (PoE+ / DC12V/ AC24V)
- BNC Analog Output for installation support
- RS-485 Support
- Auto Back Focus Support(Optional)
Technical Specification
| Camera | Image Sensor | 1/3” Progressive CMOS Omni Vision 4M |
|---|---|---|
| Lens | CS Mount lens Remote focus (ABF) (Optional) |
|
| SNR | N/A | |
| WDR | Yes (HDR) | |
| Day/Night ICR | Yes | |
| IR LED | N/A | |
| Min. Illumination | 0.1 lux (Color) 0.01 lux (B/W) |
|
| Iris Control | Dual IRIS support (Auto-IRIS & P-IRIS) | |
| Shutter Time | 1/1 ~ 1/10,000 s | |
| Viewing Angle | N/A | |
| Camera Angle Adjustment |
N/A | |
| Pan/Tilt/Zoom Functionalities |
N/A | |
| Video | Video Compression | H.265/H.264/MJPEG |
| Resolution | Up to 2720x1536 | |
| Frame Rate | 30 fps at 4 MP (2720x1536) 30 fps at 1080P (1920 x 1080) 30 fps at D1 (720 x 480) |
|
| Video Stream | Up to 4 individually configurable streams in H.265/H.264/MJPEG Configurable resolution/frame rate/bandwidth LBR/VBR/CBR in H.265/H.264 | |
| Bit Rate | 64K ~ 10Mbps, VBR, CBR, controller frame rate and quality | |
| Video Control | Color, Brightness, Sharpness, Contrast White Balance, Exposure Control 2DNR, 3DNR, NR by Motion Masking, Text Overlay | |
| Intelligent Video | Motion Detection/Tampering/Audio detection | |
| BNC Support | Yes | |
| Video Jack | N/A | |
| Audio | Built-in MIC | Yes |
| Audio Compression | G.711/G.726/AAC/LPCM | |
| Audio Input/Output | Line In, terminal block | |
| I/O and Event Management | Connectors | RJ45, Alarm in x4, Alarm out x2, Terminal Block DC12V , AC24V Terminal Block Audio in/out 3.5mm Jack CVBS Connector, RS485 Terminal Block |
| Video Buffer | N/A | |
| Event Action | External output Activation Video recording to edge storage File Upload: FTP, network share and email Notification: HTTP, FTP, email | |
| Network | Supported Protocols | ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS |
| Ethernet | RJ-45, 10/100M | |
| Security | User Authentication/HTTPS/IP Filter/IEEE 802.1X | |
| System | Local Storage | MicroSD/SDHC/SDXC |
| RS-485 | Yes | |
| USB | N/A | |
| SDK | Surveon SDK 2.0 | |
| Viewing System | OS | Microsoft Windows 7/8 |
| Browser | IE 8.x or above, Safari, Chrome (via IE Tab) | |
| Software | Surveon VMS 2.5 | |
| General | Temperature | -30°C~55°C (-22°F~131°F) |
| Humidity | 10 to 90%, No Condensation | |
| Power | 802.3at PoE+ / DC 12V / AC 24V | |
| Power Consumption | Max. 13.68 watt | |
| Dimension (WxHxD) | ABF: 150x82x52 mm Non ABF: 125x80x53 mm |
|
| Weight | ABF: 395 g Non ABF: 300 g |
|
| Certification | CE / FCC | |
| Warranty | 2 years |
