Feature

Megapixel solutions are the key trend in video surveillance with the advanced benefit of 6-time better image clarity. However, high I/O, huge capacity, and stability of the overall system are major challenges for system integrators. Surveon's Certified Megapixel Recorders, allied with the most qualified partners in the industry, provide a high performance and reliable platform. The EMR2000 secures the multi-channel megapixel recording performance. The industrial grade design of 2 HDD, 2 GLAN have made EMR2000 an absolute choice over the commercial PCs and the ideal solution for small retail, residential and small business field application.

  • Compact and Optimized Hardware for Megapixel Recording
  • Support 2 Hot-Swappable Hard Drives
  • High Availability and Easy Maintenance
  • In-house Design and Production with 3 Years Warranty
  • Surveon Megapixel Quality Assurance Lab Certificated
  • Pre-load Certified VMS





Performance Validation

Model
Total
Channels
 Camera
Resolution		 Camera Compression Camera Bit Rate FPS Remote
Client View		 Validation*
EMR2008
8
1080P
H.264
6Mbps
25
8
PASS
EMR2016
16
1080P
H.264
6Mbps
25
16
PASS
EMR2020
20
1.3M
H.264
2 Mbps
25
20
PASS
EMR2025
25
1.3M
H.264
2 Mbps
25
25
PASS

*Remarks:

  • Tested with Milestone XProtect® Essential
  • Remote client view only



Recording Days

Number of Channels
2M Cameras*
 Max Recording Days
(12 hrs/day)		 Max Recording Days
(24 hrs/day)
4
1920 x 1080
30
15
8
1920 x 1080
15
7
12
1920 x 1080
10
5
16
1920 x 1080
7
4

*Remarks:

  • Based on 25 FPS @ 6 Mbps - Tested with Milestone XProtectR Essential

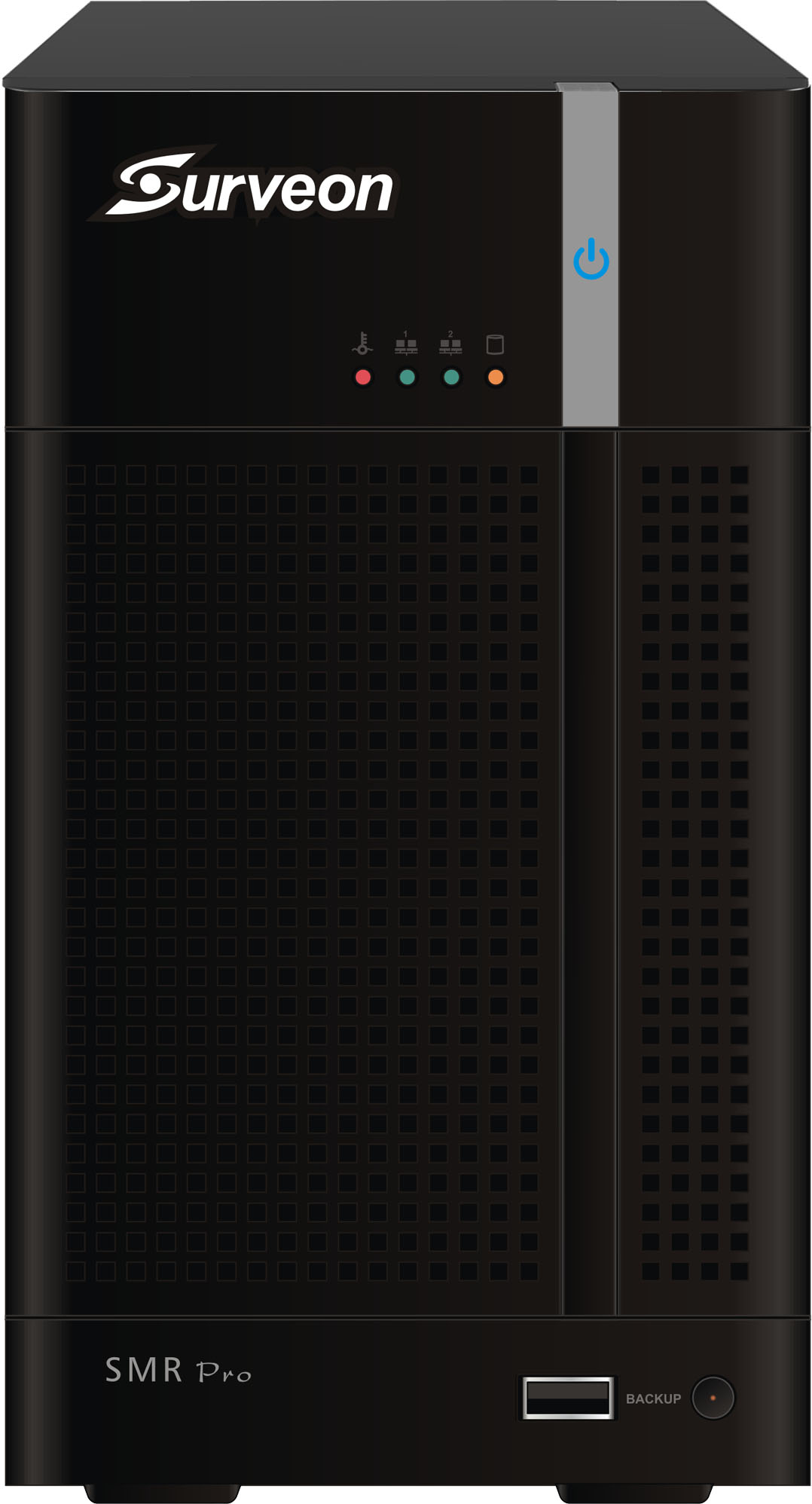

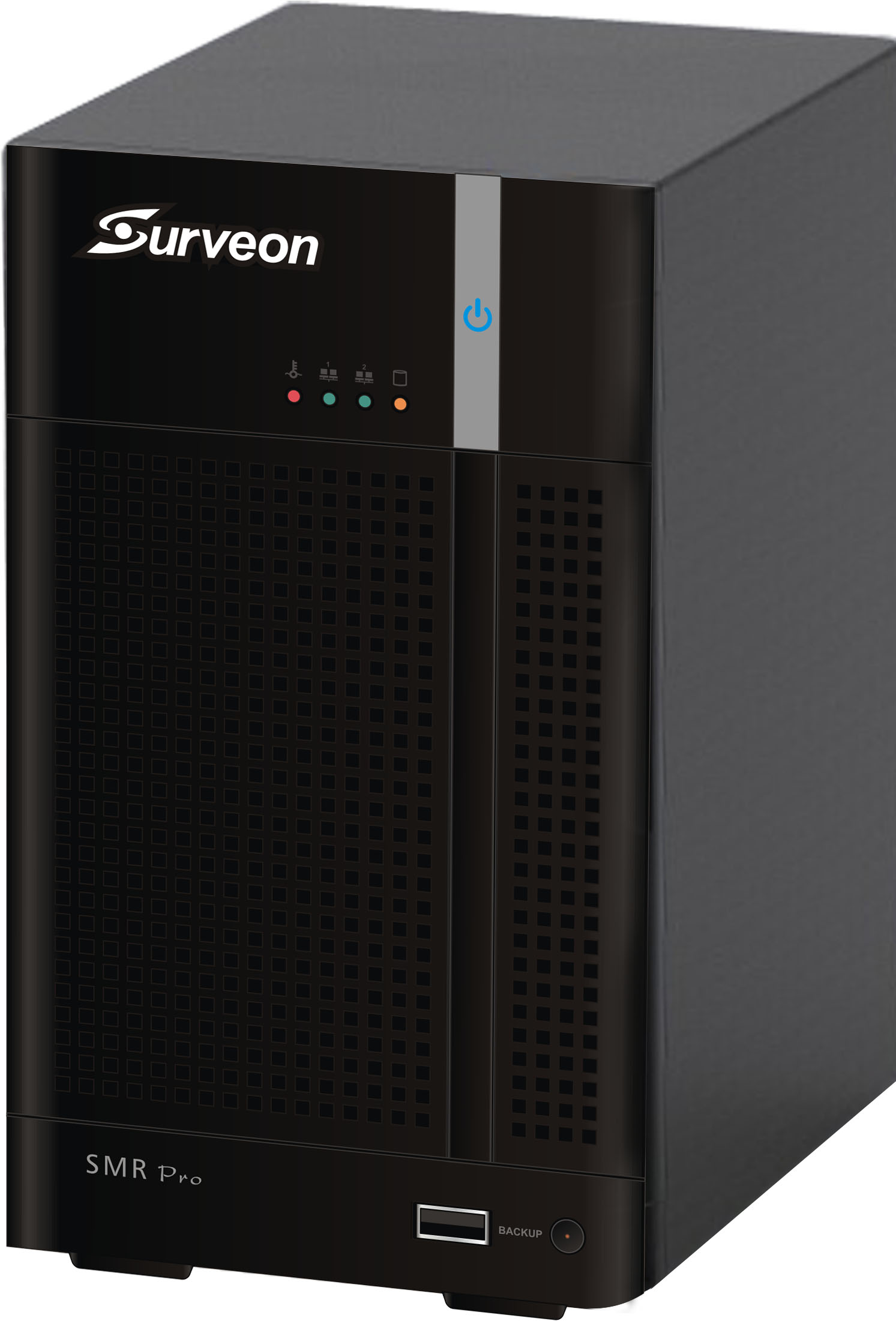

Professional Megapixel Recorder


EMR2000
 PC + Software COTS Solution
Hardware
Professional NVR
Consumer PC
COTS
Design & Production
100% Own Design & Production
N/A
N/A
QA Validation
Full Tested (Hardware & Software)
N/A
N/A
Low Power
Yes
N/A
N/A
Local Display
N/A
Yes
N/A
Dimension
190(H) x 110(W) x 245(D) mm
360(H) x 165(W) x 392(D) mm
360(H) x 165(W) x
392(D) mm



Hardware Specifications

System Processor Intel® Dual Core
System Memory DDR3 2GB
Chipset IntelR ICH9R
Storage 3.5” SATA HDDs x2; HDD hot swappable

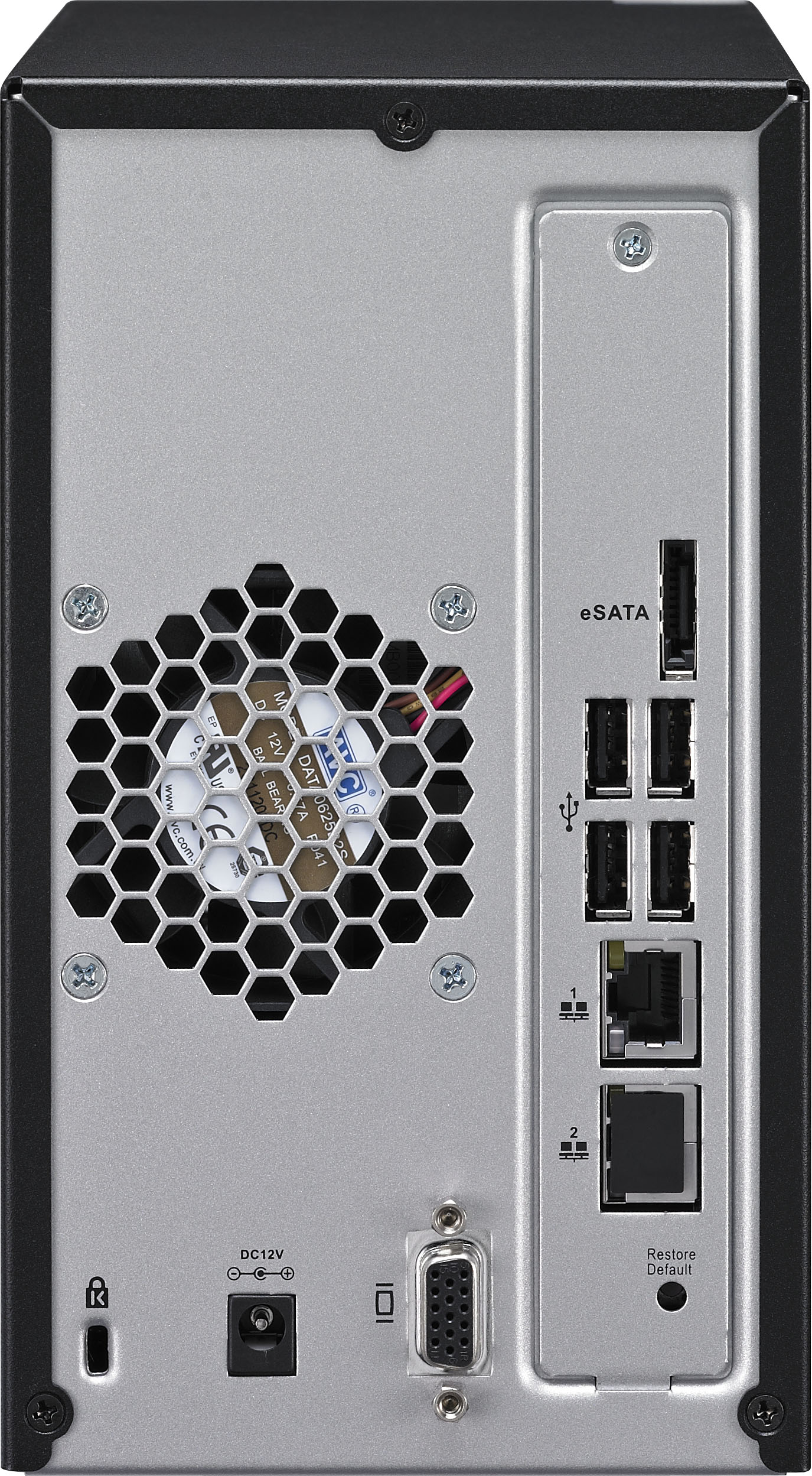

I/O Interface
  • VGA: 1x D-Sub
  • RJ-45: 2x Gigabit Ethernet
  • USB2.0: 4x Rear/1xFront
  • E-SATA: x1
Electrical
  • Input Voltage: 12VDC, 5A
  • Power Consumption (in operation): 43W
Operating
Environment
  • Humidity: 5% to 80% (non-condensing)
  • Temperature: 5° to 40°C
LED Indicator Yes
Dimensions 190(H) x 110(W) x 245(D) mm
Weight 3 Kg
Certificate BSMI, CB, FCC / CE Class B, UL60959/ IEC 60950, CCC for power only, GOST
