Feature

Megapixel solutions are the key trend in video surveillance with the advanced benefit of 6-time better image clarity. However, high I/O, huge capacity, and stability of the overall system are major challenges for system integrators. Surveon's Certified Megapixel Recorders, allied with the most qualified partners in the industry, provide a high performance and reliable platform.
Built-in with the HW RAID, the EMR8000 secures the multi-channel megapixel recording performance. The industrial grade design of 8 HDD, duo display, and 2 GLAN have made EMR8000 an absolute choice over the commercial PCs and the ideal solution for mission critical projects, such as hotel, school, bank and factory.

  • Optimized Hardware RAID for Megapixel Recording
  • Support 8 Hot-Swappable Hard Drives
  • High Availability and Easy Maintenance
  • Built-in D-Sub/HDMI for VGA Local Display
  • In-house Design and Production with 3 Years Warranty
  • Surveon Megapixel Quality Assurance Lab Certificated
  • Pre-load Certified VMS





Performance Validation

Model
Total
Channels
 Camera
Resolution		 Camera Compression Camera Bit Rate FPS Smart Client
View Mode		 Validation*
EMR8008
8
1080P
H.264
6Mbps
25
Medium
PASS
EMR8016
16
1080P
H.264
6Mbps
25
Medium
PASS
EMR8032
32
1080p
H.264
6Mbps
25
Medium
PASS
EMR8040
40
1.3M
H.264
6Mbps
25
Medium
PASS
EMR8048
48
1.3M
H.264
6Mbps
25
Medium
PASS

*Remarks:

  • Tested with Milestone XProtect® Enterprise.
  • RAID 5 rebuild and degrade mode will decrease the recording performance depending on the number of channels.


Recording Days

Number of Channels
2M Cameras*
 Max Recording Days
(12 hrs/day)		 Max Recording Days
(24 hrs/day)
48
1920 x 1080
13
7
32
1920 x 1080
19
10
25
1920 x 1080
25
12
16
1920 x 1080
39
20

*Remarks:

  • * Base on 25 FPS @ 6 Mbps - Tested with Milestone XProtectR Enterprise.

    •

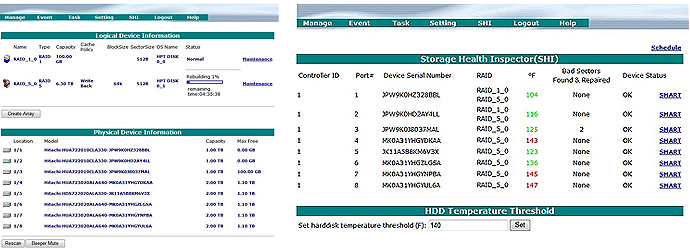

    EMR Hardware RAID Management

    • High Reliability RAID Protection -the VMS and record data can protect with RAID to provide the maximum reliability for the 24/7 application.
    • Event Notification - the EMR RAID system will record Administrator activity or RAID related errors to the Web GUI's Event Log. This feature allows the administrator to track and diagnose storage related problems. The Web GUI can also be configured to send event log
      data via e-Mail.
    • Maintenance Tasks – the Web GUI allows the administrator to schedule regular maintenance sessions. Routine RAID Maintenance is essential to data security.
    • Rebuild Priority – this feature allows the administrator to control and streamline system resources during a RAID recovery procedure.
    • Storage Health Inspector (SHI) - the Storage Health Inspector section provides real-time device related information including temperature readings, bad sector counts, and access to SMART data.



    Hardware Specifications

    System Processor Intel® Core i3 Processor @ 3.10 GHz
    System Memory DDR3 4GB
    Chipset Intel® Q67 Express Chipset-Embedded
    Storage 3.5" SATA HDDs x8; HDD hot swappable with LED status indicator
    I/O Interface
    • VGAx1; HDMIx1
    • RJ-45: 2x Gigabit Ethernet
    • USB: 6x USB2.0
    • COM: x1
    H/W RAID

    RAID 0, 1, 5, JBOD
    Electrical
    • Input voltage: 100V~240V, 3.5A
    • Power Supply: 430W
    Operating
    Environment    		 In operating
    • Humidity: 5% to 80% (non-condensing)
    • Temperature: 5o to 40oC
    LCD Panel Yes
    LED Indicator Yes (Fan, Temperature, Power, HDD)
    Dimensions 310(H) x 175(W) x 380(D) mm
    Weight 8.9 Kg (w/o Hard Disk)
    Certificate BSMI, CB, FCC / CE Class B, UL60959/ IEC 60950,
    CCC for power only, GOST
