Feature

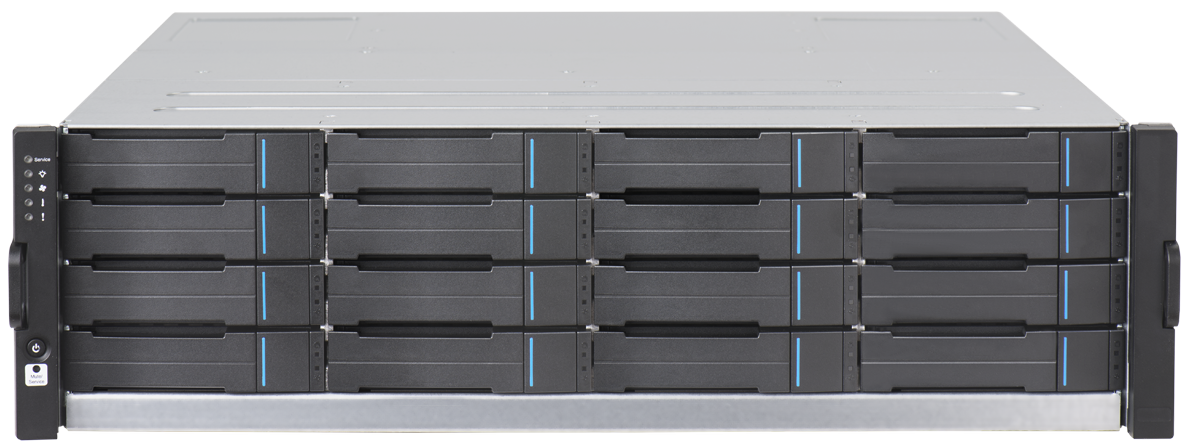

The NVR7312/7316 Linux RAID NVR is part of Surveon Corporate Series. Featuring 12/16-bay hot-swappable hard disks and RAID 1, 5, 6 data protection, the NVR7312/7316 supports Full HD (1080P) video recording of up to 128 channels for the video retention period from 7 to 30 days. Based on the client-server architecture, the NVR7312/7316 provides high I/O, large capacities, and overall system stability necessary for scalable projects. The NVR7312/7316 also comes with the enterprise VMS with real-time monitoring and video analytics and supports centralized management and TV wall matrix with the Surveon Control Center (SCC). The cableless design, redundant components such as cooling fans and power supplies also ensure excellent system reliability and easy maintenance for large applications.
- Maximum 128CH Megapixel Recording (up to 5MP or above)
- The System Results In A High Level of Recording Throughput of 768 Mbps In Total
- Support 12/16-bay Hot-Swappable SATA Hard Disk
- SAS JBOD and iSCSI Storage Expansion
- Support 14x 3U 16-bay JBOD (total 240HDDs) or 5x 4U 60-bay JBOD (total 316HDDs)
- Enterprise Hardware RAID Function for Data Protection
- Cableless Design & Two Redundant Power Supplies
- Built-in Enterprise VMS & Real-Time Video Intelligence
- Support Web-based System Maintenance Tool (SurveOne)
- Scalable Client-Server Architecture
Software Specifications
Live View |
|
---|---|
eMAP |
|
PTZ |
|
I/O |
|
Multiple Displays |
|
Investigation |
|
Video Intelligence |
|
Recording Policy |
|
Rule Manager |
|
Remote Management |
|
Remote Client |
|
3rd Party IPCAM |
|
Storage Expansion |
|
General & Misc. |
|
Language | Support multiple language on VMS including English,Czech, Dutch, French, German, Italian, Japanese,Korean, Persian, Polski, Portuguese, Russian, Slovak, Spanish, Turkish, Simplified Chinese, Traditional Chinese |
Supported Protocols | IPv4, TCP, UDP, DHCP, NTP, DDNS, SMTP, SNMP, FTP, HTTP, UPnP, RTSP, iSCSI |
SurveOne - Web-Based System Monitoring Tool
System Monitoring |
|
---|---|
Configurations |
|
Event Log |
|
Hardware Specifications
NVR7300 Series | |
---|---|
System Processor | Intel® Xeon E3 Quad Core 3.2GHz |
System Memory | DDR3 16GB (up to 32GB) |
Operating System | 2.5” HDD with Linux Embedded System |
Storage | 12/16 x 3.5” SATAII/SATAIII hard disk drives |
I/O Interface |
|
RAID | 0, 1, 5, 6, 10, 50, 60, 1+Spare, 5+Spare, 6+Spare |
Electrical | Dual Redundant PSU (460W) |
Operating Environment |
|
LED Indicator | Yes |
Dimensions |
|
Weight |
|
Certification | UL, CB, FCC/CE Class A |
Warranty | 3 years |
