Feature

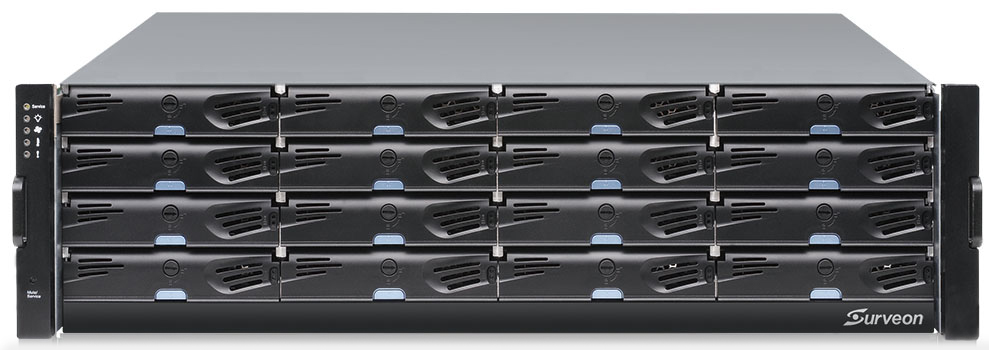

The NVR5316 Linux RAID NVR is part of Surveon Enterprise NVR5000 Series. Featuring 16-bay hot-swappable hard disks and RAID 1, 5, 6 data protection, the NVR5316 supports Full HD (1080P) video recording of up to 64 channels for the video retention period from 7 to 30 days. Based on the client-server architecture, the NVR5316 provides high I/O, large capacities, and overall system stability necessary for scalable projects. The NVR5316 also comes with the enterprise VMS with real-time monitoring and video analytics and supports centralized management and TV wall matrix with the Surveon Control Center (SCC). The compact server NVR size, cableless design, redundant components such as cooling fans and power supplies also ensure excellent system reliability and easy maintenance for middle to large applications.

  • Support 16/24/32/48/64 CH Megapixel Recording (up to 5MP or above)
  • Scalable Client-Server Architecture
  • Support 16-bay SATA Hard Disk
  • Built-in RAID Function for Data Protection
  • Built-in Real-time Video Intelligence Detection
  • Support Surveon Control Center
  • Two Redundant Power Supplies








Software Specifications

Live View
  • Real-time network camera discovery
  • Versatile views of various screen divisions
  • Multiple views supported
  • View patrolling for single or multiple views
  • Real time video/event alarm monitoring
  • Support 3 installation modes and 5 different fisheye dewarp display modes
  • Support live audio
eMAP
  • Drag-n-drop camera manipulation
  • Hierarchical and multiple layer map structure
  • Real time event alert
  • Instant live video of camera
PTZ
  • Pan, tilt, and zoom operations (depends on camera)
  • Built-in PTZ control panel
  • Preset position (depends on camera)
  • Event-driven camera patrolling
  • Support OnScreen PTZ
I/O
  • Digital I/O management
  • Support Ethernet Digital I/O Controller
Multiple Displays
  • Supports live view, playback, eMap functions (depends on product)
Investigation
  • Search by date, time, and camera
  • Search by VI event combinations
  • Search over multiple days
  • Search over multiple cameras
  • Different colored recording indicator on calendar
  • Search via built-in VI analyzer
  • Intuitive, video thumbnail search results
  • Cue-in, cue-out and loop playback
  • Quick playback by video thumbnails
  • 1/8, 1/4, 1/2, 1x, 2x, 4x, 8x play, pause, stop
  • AVI-formatted video clip export
  • Up to 16 channel synchronized playback (depends on product)
  • Support 3 installation modes and 5 different fisheye dewarp playback display modes
Video Intelligence
  • Yes
Recording Policy
  • Supports up to 96 channels megapixel recording (depends on product)
  • Continuous recording
  • Event-driven recording along with rules
  • Scheduled recording on daily or weekday basis
  • Post alarm recording 1-300 seconds
  • Pre-alarm recording 1-300 seconds
  • Support individual schedule recording
Rule Manager
  • Conditional recording/alert/notification
  • Email, FTP, SMS, popup window, PTZ,VI Panel,Relay output notifications
  • Sound, alarm, round-the-clock alerts
  • Support email template
Remote Management
  • Remote operation & management via VMS Client
  • Remote management and control via SCC & SCC Client
Remote Client
  • Web Client
  • iPhone client
  • Android Client
3rd Party IPCAM
  • ACTi, Arecont Vision, Axis, Dahua, Dynacolor, Hikvision, IQinvision, Mobotix, Panasonic, and more
Storage Expansion
  • Built-in RAID storage management
  • Recording to iSCSI/NAS
  • Backup to iSCSI/NAS
General & Misc.
  • Video privacy mask
  • Digital zoom in, zoom out
  • Log viewer, log export mechanism
  • Client auto login
  • Automatic storage recycling
  • Client-server architecture
  • Customized authority account management
  • Digital watermark proofing
  • Support DDNS function
  • Support time synchronization with NTP server
  • Provide System and VI setup Help assistance
  • Support Customized Event management and log mechanism
  • Auto port mapping for internet connection
  • Support batch setting IPCAM parameters
  • Support Health Check function
  • Support standby recording (Failover)
  • Support offline recording with Surveon cameras
  • Support APC SMART-UPS
Language Support multiple language on VMS including English,Czech, Dutch, French, German, Italian, Japanese,Korean, Persian, Polski, Portuguese, Russian, Slovak, Spanish, Turkish, Simplified Chinese, Traditional Chinese
Supported Protocols IPv4, TCP, UDP, DHCP, NTP, DDNS, SMTP, SNMP, FTP, HTTP, UPnP, RTSP, iSCSI



SurveOne - Web-Based System Monitoring Tool

System Monitoring
  • NVR/camera system status overview
  • NVR device/network/storage real-time status monitoring
  • Camera real-time status monitoring
Configurations
  • Easy NVR/camera configuration copy
  • Easy NVR/camera configuration backup/restore
Event Log
  • NVR/camera real-time event log information
  • Critical error/error/warning multi-level event classifications


Hardware Specifications

NVR5316 Series
System Processor NVR5316E1: Intel® Core i3 Dual Core 3.5GHz
NVR5316A1: Intel® Xeon E3 Quad Core 3.2GHz
System Memory DDR3 4GB (up to 32GB)
Operating System Linux Embedded System
Storage 16 x 3.5” SATAII/SATAIII hard disk drives
I/O Interface
  • RJ-45: 2x Gigabit Ethernet
  • USB: 2x USB2.0 ; 2x USB3.0
  • VGA: x1, HDMI: x2 (Only support single monitor at the same time)
  • 16 pin for 8 in / 2 out*
RAID Non RAID, 1, 5, 6
Electrical
  • Input voltage: 100VAC~240VAC, 50~60Hz, 10~5A (max)
  • Power Supply: Two redundant 530W
Operating
Environment
  • Humidity: 5% to 80% (non-condensing)
  • Temperature: 5º to 35ºC
LED Indicator Yes (Power, HDD, FAN, system fault)
Dimensions 130(H) x448 (W) x 500(D) mm
Weight 21.54kg/ 47.49lbs (without HDDs)
Certification UL, CB, FCC/CE Class A
Warranty 3 years
