Feature

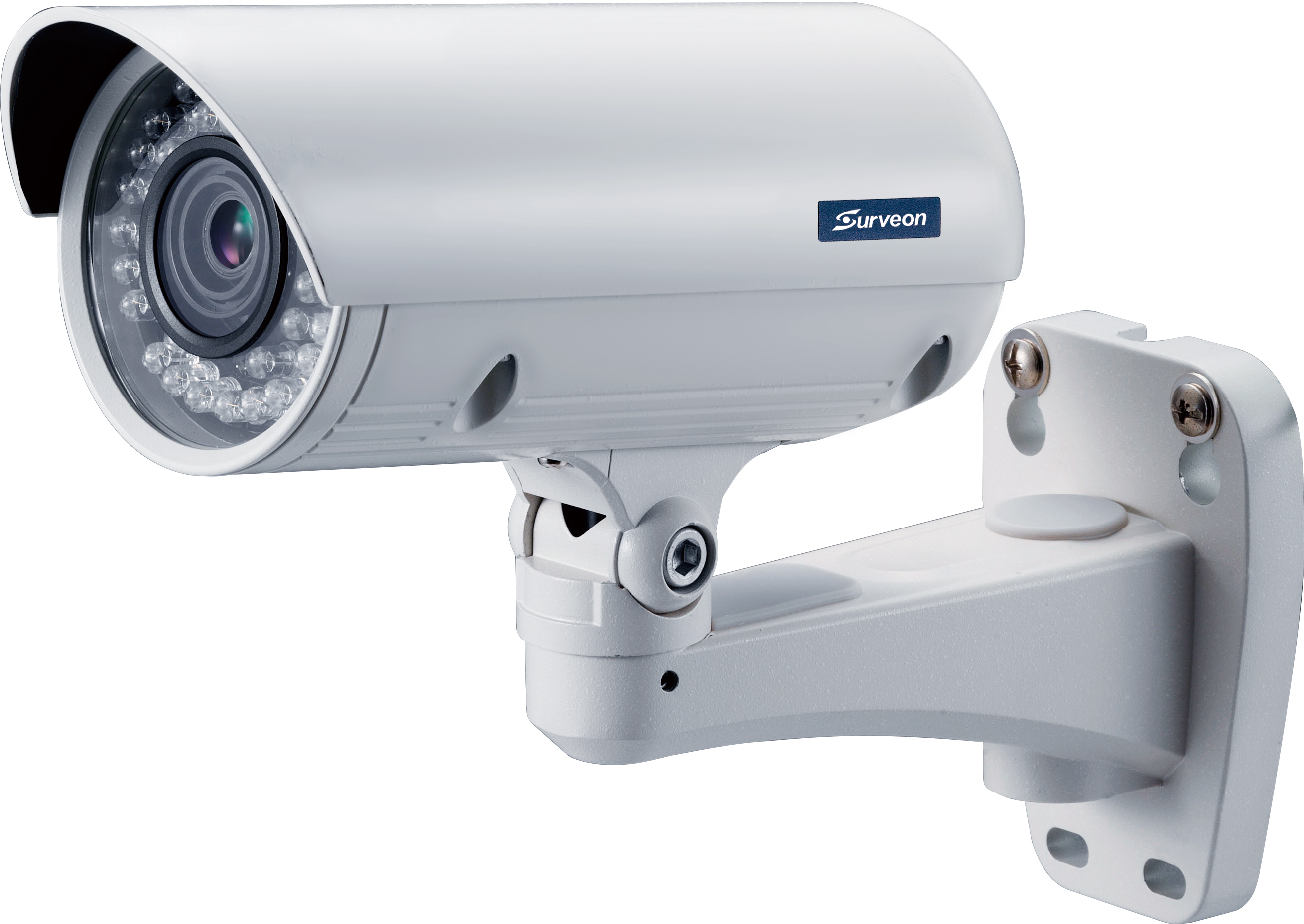

The CAM3361LV WDR outdoor camera is part of Surveon Professional Network Camera Series. Equipped with the SONY Exmor sensor, the CAM3361LV provides 1920 x 1080 (1080P) resolution at 30fps and IP66-rated weatherproof housing for withstanding rain and dust. The advanced functions include WDR, ROI video cropping, 2D/3D noise reduction, and edge enhancement. Its built-in infrared LEDs and removable IR-cut filter allow 24/7 operations even in the low lux condition. The CAM3361LV also comes with the varifocal lens and Power over Ethernet. It is the excellent choice for professional surveillance in the diverse outdoor applications.
- Megapixel SONY Exmor Sensor
- Up to 1920 x 1080 Video Resolution
- H.264/MPEG4/MJPEG 2 imultaneous Video Streams
- Surveon Video Intelligent Ready
- MicroSD/SDHC Local Storage for Alarm Capture
- Advanced ISP Function (WDR, ROI, Luminance Control, 2D/3D De-noise, Edge Enhancement, Lens Correction)
- PoE (IEEE 802.3af) and Day/Night IR-Cut Filter
- Built-in IR Illuminators, Effective Up to 20 Meters
- IP66 for Outdoor Application
Technical Specification
| Camera | Image Sensor | 1/2.9” megapixel SONY Exmor CMOS |
|---|---|---|
| Lens | f3-10.5 mm varifocal lens, F1.4 | |
| SNR | 48dB | |
| WDR | Yes | |
| Day/Night ICR | Yes | |
| IR LED | Yes(20m) | |
| Min illumination | 0.01 Lux @ F1.4 (B/W), 0.1 Lux @ F1.4 (Color) | |
| Iris Control | Auto Electronic Control | |
| Shutter Time | 1/1 ~ 1/1,000,000 s | |
| Viewing Angle | Diagonal: 130°~38°, Horizontal: 108°~32°, Vertical: 58°~18° | |
| Camera Angle Adjustment |
N/A | |
| Pan/Tilt/Zoom Functionalities |
N/A | |
| Video | Video compression | H.264/MPEG-4/MJPEG |
| Resolution | Up to 1920 x 1080 | |
| Frame Rate | 30 fps at 1080P (1920 x 1080) 30 fps at SXGA (1280 x 1024) 30 fps at HD720 (1280 x 720) 30 fps at D1 (720 x 480) 30 fps at VGA (640 x 480) 30 fps at QVGA (320 x 240 |
|
| Video Stream | Dual stream at H.264, MPEG-4, and MJPEG simultaneously | |
| Bit Rate | 32K ~ 10Mbps, VBR, CBR, controller frame rate and quality | |
| Video Control | AGC (Auto Gain Control), AWB (Auto White Balance), AES (Auto Electronic Shutter), Luminance Control, WDR, 2D/3D De-noise, ROI, Edge Enhancement, Lens Correction, image adjustment | |
| Intelligent video | Motion detection, tampering detection (blocked, redirected, defocused, or spray-painted) |
|
| Video Jack | N/A | |
| Audio | Built-in MIC | N/A |
| Audio compression | N/A | |
| Audio Input | N/A | |
| Audio Output | N/A | |
| I/O and Event Management | Alarm In | N/A |
| Alarm Out | N/A | |
| Video Buffer | 5 second pre-alarm, 30 second post-alarm | |
| Event Action | Send snapshot or video clip by FTP or email, record to NAS, record to local storage, trigger DO |
|
| Network | Supported Protocols | IPv4, IPv6, ARP, TCP, UDP, ICMP, IGMP, DHCP, NTP, DDNS, SMTP, SNMP, FTP, HTTP, HTTPS, CIFS, PPPoE, UPnP, RTP, RTSP, RTCP, 3GPP |
| Ethernet | 10/100 Base-T / RJ45 | |
| System | Local Storage | microSD/SDHC x 1 |
| RS-485 | N/A | |
| USB | N/A | |
| SDK | Surveon SDK 2.0 | |
| Viewing System | OS | Microsoft Windows XP/Vista/7 |
| Browser | Microsoft IE 6.0 or above | |
| Software | Surveon VMS 2.5 | |
| General | Temperature | Operation: -10°C ~ 50°C (14°F~122°F) |
| Humidity | 5 to 90% | |
| Power | PoE (IEEE 802.3af ) with Class 3 | |
| Power Consumption | Max. 7.9W (w/o Heater) | |
| Dimension (WxHxD) | Length: 165mm, Diameter: 75mm | |
| Weight | NET: 600g With bracket: 800g |
|
| Certification | Safety: LVD EMC: FCC, CE, IP66 |
|
| Warranty | 3 years |
